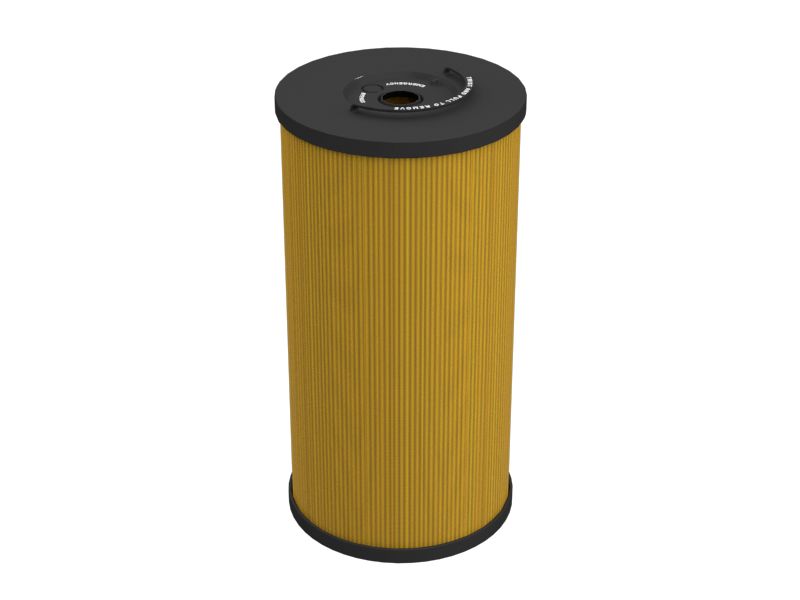

Caterpillar 513-4493 Fuel Water Separator

Standard Efficiency Fuel Water Separators are designed to eliminate 100% free water and 90% emulsified water along with smaller contaminates while helping extend the life of your secondary filter and expensive injectors.

Cat Fuel Water Separators are built to extend the life of your secondary filter and precision fuel system components.

The Fuel Water Separator 5134493 is an easy to grip bail handle designs; the Broadside process eliminates metal V-Clip.

Injector erosion causes loss of power and increased fuel burn, which is why it's critical to protect your injectors by choosing longer-lasting Cat Fuel Water Separators.

The fuel water separator material is HV fuel water separator paper, the stiffness is good, filtering accuracy up to standard, good filtration efficiency, product quality is more stable, can better protect the engine.

ADVANTAGES:

1. Large flow capacity, low-pressure loss.
2. Large dust capacity, high precision filtration, long replacement period.
3. Good temperature and corrosion resistance.
4. Pleated material increases the filtration area, and can be welded.
5. High strength, even if strong vibration, the fiber does not fall off.

Specifications for Cat 5134493 Fuel Water Separator:

Overall Height: 226.00 mm
Largest OD: 109.50 mm
Largest ID 1: 20.60 mm
Largest ID 2: 15.90 mm

CROSS-REFERENCES:

Baldwin PF7890-30, HASTINGS FF1237, HIFI-FILTER SN920230, Racor 2020 Series

* All fitment filter part numbers are based on your engine serial number.
* Please confirm with our team if you are unsure this filter will fit your engine.
