Air Sentry D-Series Desiccant Breathers: Features & Model Guide
Why Use a D-Series Desiccant Breather?
Every time a tank, reservoir, or gearbox breathes, through temperature changes or fluid level shifts, it pulls in outside air along with moisture and airborne dirt. That contamination degrades lubricants, promotes rust and corrosion, and shortens the life of bearings, gears, and pumps. Replacing a standard vent cap with an Air Sentry D-Series desiccant breather filters incoming air before it ever reaches your fluid.
D-Series breathers are designed for stationary fluid management applications. With several heights and connection types available, there's a model to fit most equipment.
Key Features
- 2-micron solid particle filtration on every model keeps fine dust and debris out of your system.
- 20 cfm airflow rating across the series.
- Flexible media options: 100% silica gel for moisture adsorption, 100% activated carbon for fume and odor control, or a combination of both.
- Color-changing indicator: the silica gel turns from gold to dark green as it adsorbs moisture, so you can see breather condition from a distance.
- Clear acrylic tube for easy visual inspection.
- Durable construction: high-impact ABS top and bottom caps and industrial-grade materials tested for a wide range of chemical compatibilities.
Common Applications
D-Series breathers are well suited to stationary equipment, including:
- Oil and fluid storage tanks
- Hydraulic and fluid reservoirs
- Transformers
- Pumps
- Gearboxes
For mobile or heavy equipment exposed to vibration, take a look at our R-Series desiccant breathers. For applications where space is limited, see the Z-Series desiccant breathers.

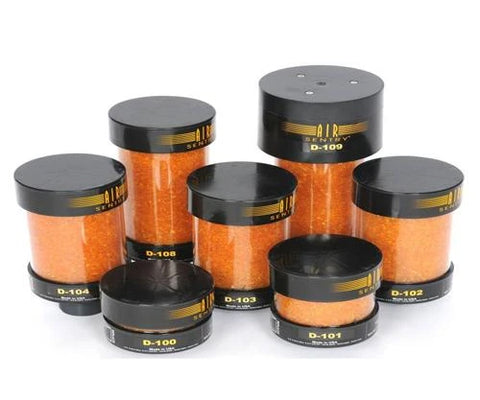

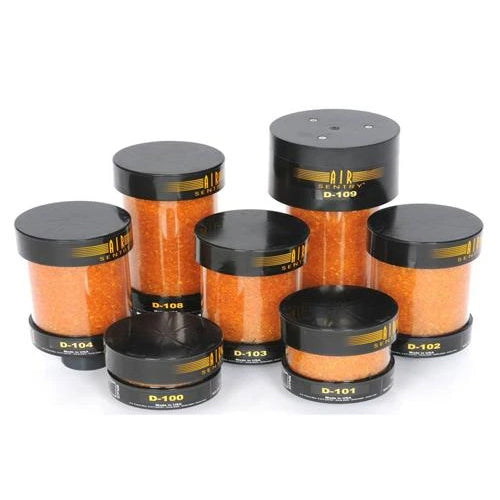

D-Series Model Guide
All D-Series breathers share a 5" diameter. Choose your model by height (which determines desiccant volume) and connection type:
- D-100: 5" x 3.5", 1" slip fit
- D-101: 5" x 5", 1" slip fit
- D-154: 5" x 5", 1" MNPT
- D-102: 5" x 8", 1" slip fit
- D-103: 5" x 8", 1" MNPT
- D-104: 5" x 8", 2" MNPT
- D-108: 5" x 10", 2" MNPT
Taller breathers hold more desiccant, so they last longer between replacements. That makes them a good choice for larger reservoirs, humid environments, or equipment with frequent breathing cycles.
When to Replace Your Breather
Check the silica gel regularly through the clear tube. Once the gel has changed from gold to dark green, the breather has reached its moisture capacity and should be replaced to keep protecting your equipment.
Need Help Choosing?
Not sure which D-Series model fits your application, or need pricing for multiple units? Our team can help you select the right breather and provide bulk quotes. Request a quote.
