Whitmores EZ Switch Performance Lubricants

Performance Lubricants

Switch Plate Lubricant - EZ Switch has distinguished itself as a switch plate lubricant that works. It is easy to apply; it forms a protective coating on the switch plate, resists rain, and stops wear.

After it is applied, EZ Switch begins to dry on the switch. Operating the switch causes the lubricant to “plate out”. As the switch operates, the coating becomes denser in the contact area, enhancing wear protection. EZ Switch can be applied to wet switches and resists rain; this lubricant becomes more resistant to rain as it dries. With EZ Switch, a switch that operates twice as often does not need lubrication twice as often.

Specifications

Type: Switch Plate Lubricant
Grade: Lighter than 000 (EZ Switch Clear - 46)
Base Material: Fluid w/ Graphite, Bentone

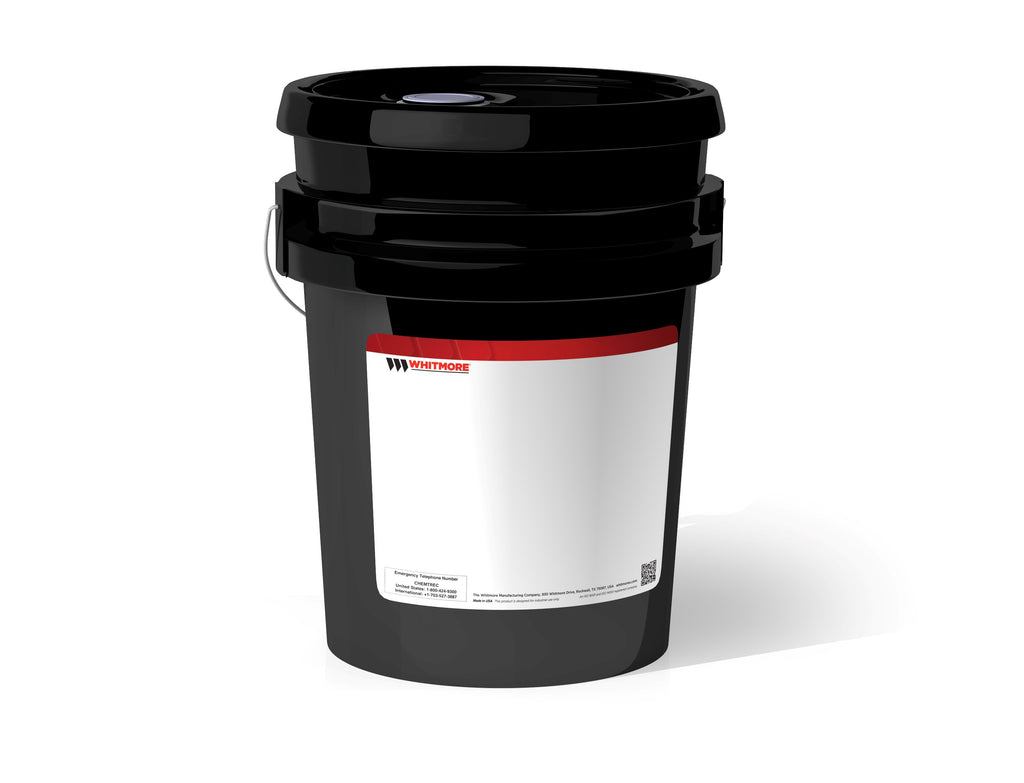

Packaging: Pails, Kegs, Drums, Shuttle Tanks, Nonreturnable Totes (EZ Switch Clear - Pails)

BENEFITS:

REDUCES FRICTION AND WEAR - low coefficient of friction facilitates ease of switch operation. This minimizes effort and risk of injury on manual switches.
LONG LASTING PROTECTION -less frequent reapplication saves time and lowers consumption.
WIDE TEMPERATURE RANGE - can be used at temperatures as low as - 60°F (-51°C). One grade is suitable for year-round use.
EASY TO APPLY - it can be poured, brushed, or sprayed.
RESISTS CONTAMINANTS – does not attract dirt.

APPLICATIONS:

EZ Switch is formulated primarily for use on railroad switch plates (railway slide chairs). It can also be used on wire ropes. Because it is high in graphite, it is suitable for use in high temperature applications (>600°F, or >315°C) where the fluid components will evaporate or burn off and leave a dry graphite lubricant.
