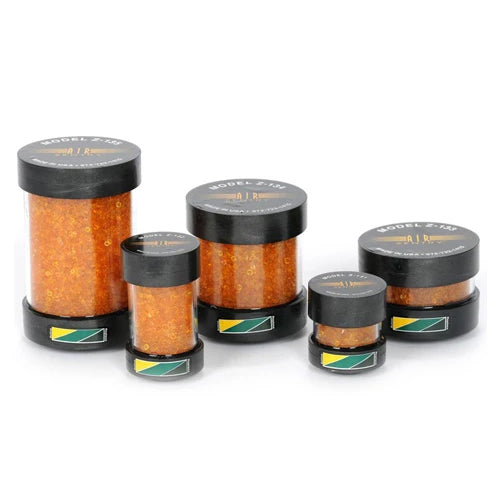

Air Sentry Z-134 Desiccant Breather

Z-Series breathers are designed for applications where space is limited or air flow requirements are lower than 5 cfm. The Z-Series is typically used on gearboxes and low fluid volume applications where mounting space is limited or where a larger breather will not fit without remote mounting.

All Z-Series models feature two 2 micron filters, one on the inlet and a second on the outlet.

Operating Temperature: -20°F (-29°C) to +200F (+93°C)

Specifications
Base Material: 100% Silica Gel
Height: 3.25 in 8.3 cm
Diameter: 3.25 in 8.3 cm
Mounting Connection: 1/2″ FNPT
Silica Gel: 0.5 lbs 0.2 kg
Maximum Adsorption Capacity: 3.06 fl oz 90 mL
Maximum Air Flow: 5 cfm
Maximum Reservoir Fluid Flow: 37 gpm
Type of Medium: 100% Silica Gel
