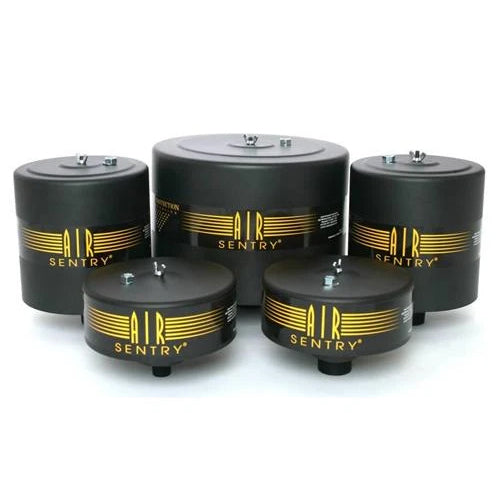

Air Sentry M-106 Desiccant Breather

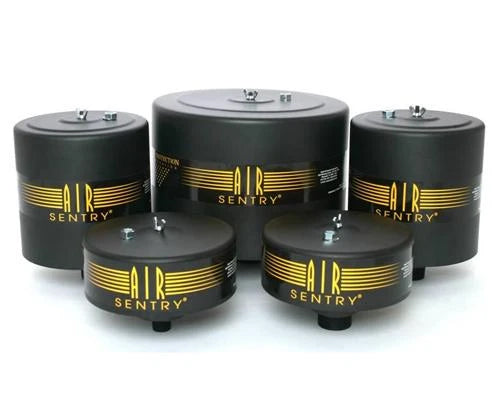

M-Series Breathers are designed from heavy-duty materials capable of handling the requirements of the most severe environments. They replace the standard breather cap or vent tube on fuel tanks and fluid reservoirs. Pipe threads on the bottom standpipe make the units easy to install in moments. All M-Series designs have 2 micron pleated filters and silica gel bags that are easily replaced. They also feature the proprietary Splash Sentry™, which prevents foaming or splashing fluids from entering the breather during normal operating conditions.

All M-Series models feature two 2 micron filters, one on the inlet and a second on the outlet.

Operating Temperature: -20°F (-29°C) to +200F (+93°C)

Specifications
Base Material: 100% Silica Gel
Height: 12 in 30.5 cm
Diameter: 10 in 25.4 cm
Mounting Connection: 2" MNPT
Silica Gel: 4.5 lbs 2.0 kg
Maximum Adsorption Capacity: 27.6 fl oz 816 mL
Maximum Air Flow: 120 cfm
Maximum Reservoir Fluid Flow: 900 gpm
Type of Medium: 100% Silica Gel
Replacement Silica Gel Bag: 095A202
Replacement Polyester Pleated Filter: 095A205
Filter Weight: 3.0 lbs 1.4 kg
