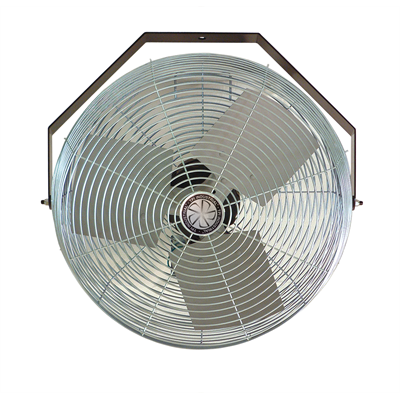

TPI U24TE 24" U-TE Series Industrial Mounted Workstation Fan

$ 284.00 $ 181.76
Bulk Pricing: Request a Quote
  • Availability: Out Of Stock
  • Product Sku: 08540702
  • Pull chain switch
  • Head rotates 360° vertically and horizontally
  • Coated steel guards
  • SJT type 3 conductor, 10’ long cord
  • Steel hub/spider aluminum paddle blades
  • Mount with one bolt or lag screw to walls, ceilings, work benches, machines or any surface.
  • Meets OSHA standards / 1 Year limited warranty
  • CFM measured 2 feet from face of fan
  • Imported to TPI specifications
  • Can be used in outdoor semi-protected applications.
  • California residents see Prop 65 Warnings

 Catalog Number 08540702
 Model Number U-24-TE
 Agency Rating ETL-CUS
 Fan Style Type Direct Drive
 Blade Size 24
 Blade Material Aluminum
 Switch
Pull Chain
 Speeds 3
 CFM High 2100
 CFM Med 1900
 CFM Low 1600
 Velocity Profile CFM / Area Sq. Ft. 3500 / 150
 Motor Rating HP
1/8
 Motor Volt 120
 RPM High 1634
 RPM Medium 1484
 RPM Low
 1200
 Voltage 120
 Amp 2.4
 Phase 1
 Cord Type SJT
 Cord Length
10'
 Connection Type 3 Conductor
 Color Silver
 Height 27"
 Width 26"
 Depth 10-1/2"
 Weight (lbs) 23
