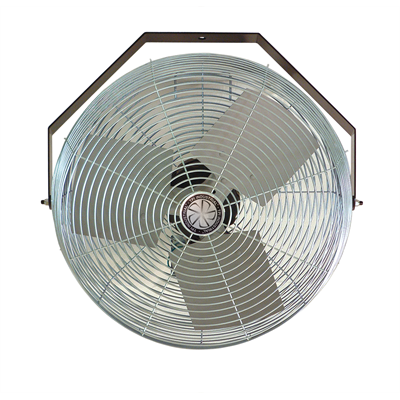

TPI U18TE 18" U-TE Series Industrial Mounted Workstation Fan
TPI U18TE 18" U-TE Series Industrial Mounted Workstation Fan
SKU:07972802
Regular price
$ 161.92
Regular price
$ 253.00
Sale price
$ 161.92
Out of stock
Request bulk pricing
Quantity
Couldn't load pickup availability
Product Description
- Pull chain switch
- Head rotates 360° vertically and horizontally
- Coated steel guards
- SJT type 3 conductor, 10’ long cord
- Steel hub/spider aluminum paddle blades
- Mount with one bolt or lag screw to walls, ceilings, work benches, machines or any surface.
- Meets OSHA standards / 1 Year limited warranty
- CFM measured 2 feet from face of fan
- Imported to TPI specifications
- Can be used in outdoor semi-protected applications.
- California residents see Prop 65 Warnings
| Catalog Number | 07972802 |
| Model Number |
U-18-TE
|
| Agency Rating | ETL-CUS |
| Fan Style Type | Direct Drive |
| Blade Size | 18 |
| Blade Material | Aluminum |
| Switch |
Pull Chain
|
| Speeds | 3 |
| CFM High | 1800 |
| CFM Med | 1500 |
| CFM Low | 1300 |
| Velocity Profile CFM / Area Sq. Ft. | 2900 / 125 |
| Motor Rating HP |
1/8
|
| Motor Volt | 120 |
| RPM High | 1660 |
| RPM Medium | 1550 |
|
RPM Low |
1370 |
| Voltage | 120 |
| Amp | 2.2 |
| Phase | 1 |
| Cord Type | SJT |
| Cord Length |
10'
|
| Connection Type | 3 Conductor |
| Color | Silver |
| Height | 21-1/2" |
| Width |
20-1/2"
|
| Depth | 10-1/2" |
| Weight (lbs) | 20 |
