TPI Corporation

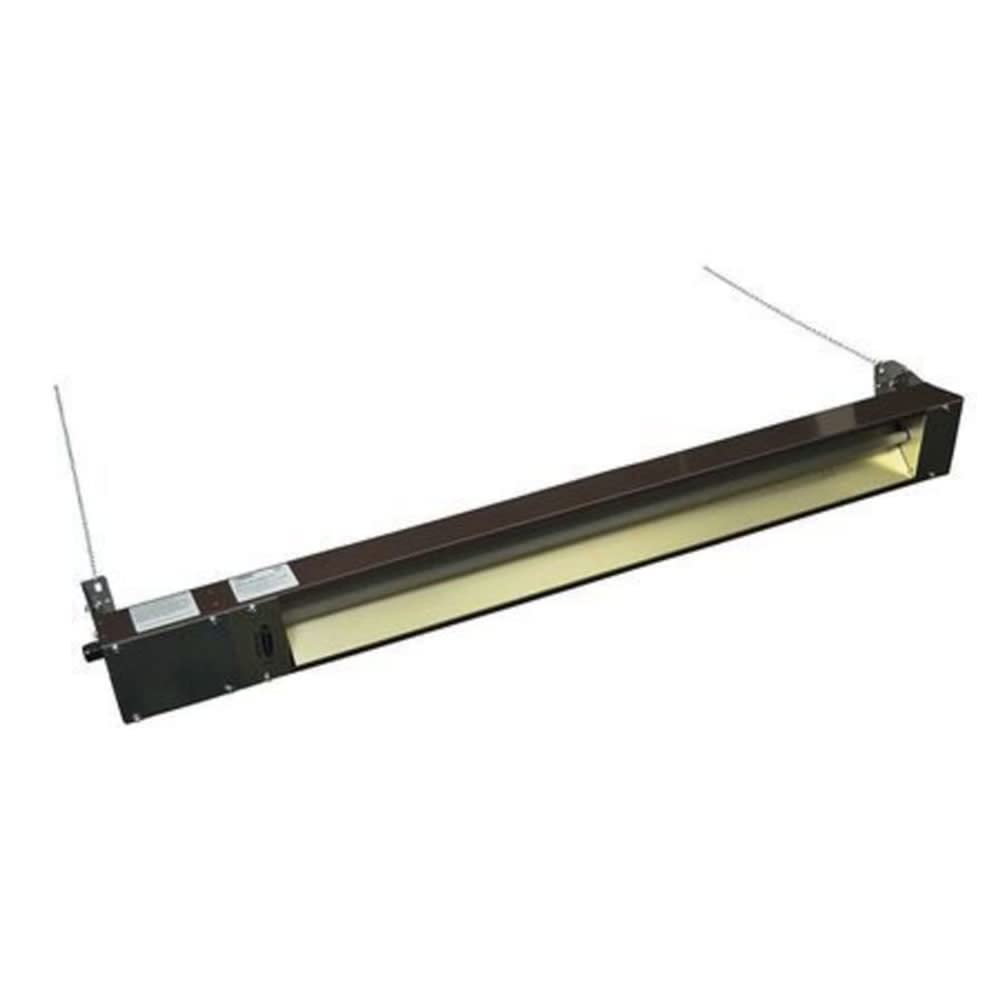

TPI OCH57240VSSE 3000W OCH Series Outdoor / Indoor Rated Quartz Electric Infrared Heater
TPI OCH57240VSSE 3000W OCH Series Outdoor / Indoor Rated Quartz Electric Infrared Heater
SKU:04805602
Regular price
$ 359.04
Regular price
$ 561.00
Sale price
$ 359.04
Out of stock
Request bulk pricing
Quantity
Couldn't load pickup availability
Product Description
- OCH Standard Model - Stainless Steel Finish
- Frosted Quartz Tube heating element (included)
- Listed for suspended, totally exposed (outdoor) and indoor spot heating applications
- Finish: High-temp brown powder coated finish or corrosion resistant stainless steel 24 gauge housing
- 60° Symmetric Heat Pattern
- Gold anodized Aluminum reflector and end caps
- Painted models are direct wire, unless specified and are supplied with 6” lead wires for field connection in the internal wiring compartment. These models are available with a factory installed 6’ cord set. The 208V model must have a field supplied plug.
- Stainless steel models include an electrical enclosure assembled to the end of the heater housing and (2) 6” long lead wires for direct field connection.
- Two 2’ ft. long mounting chains and four S-Hooks included
- The OCH-Series can be surfaced mounted using the supplied mounting brackets which allow up to a 45° horizontal tilt adjustment.
- Made in U.S.A.
- Includes Electrical Enclosure
- California residents see Prop 65 Warnings
| Catalog Number | 04805602 |
| Model Number | OCH-57-240V-SSE |
| Agency Rating | ETL-CUS |
| Connection Type | Hardwired |
| Mounting Height Indoor | 8' - 10' |
| Wattage | 3000 |
| BTU | 10239 |
| Voltage | 240 |
| Amp | 12.5 |
| Phase | 1 |
| Lamp Included | Yes |
| Lamp Type | Frosted Quartz |
| Lamp Element Number | 1 |
| Lamp PN | 04414702 |
| Length | 59 |
| Width | 5.375 |
| Height | 6.5 |
| Weight (lbs) | 12 |
