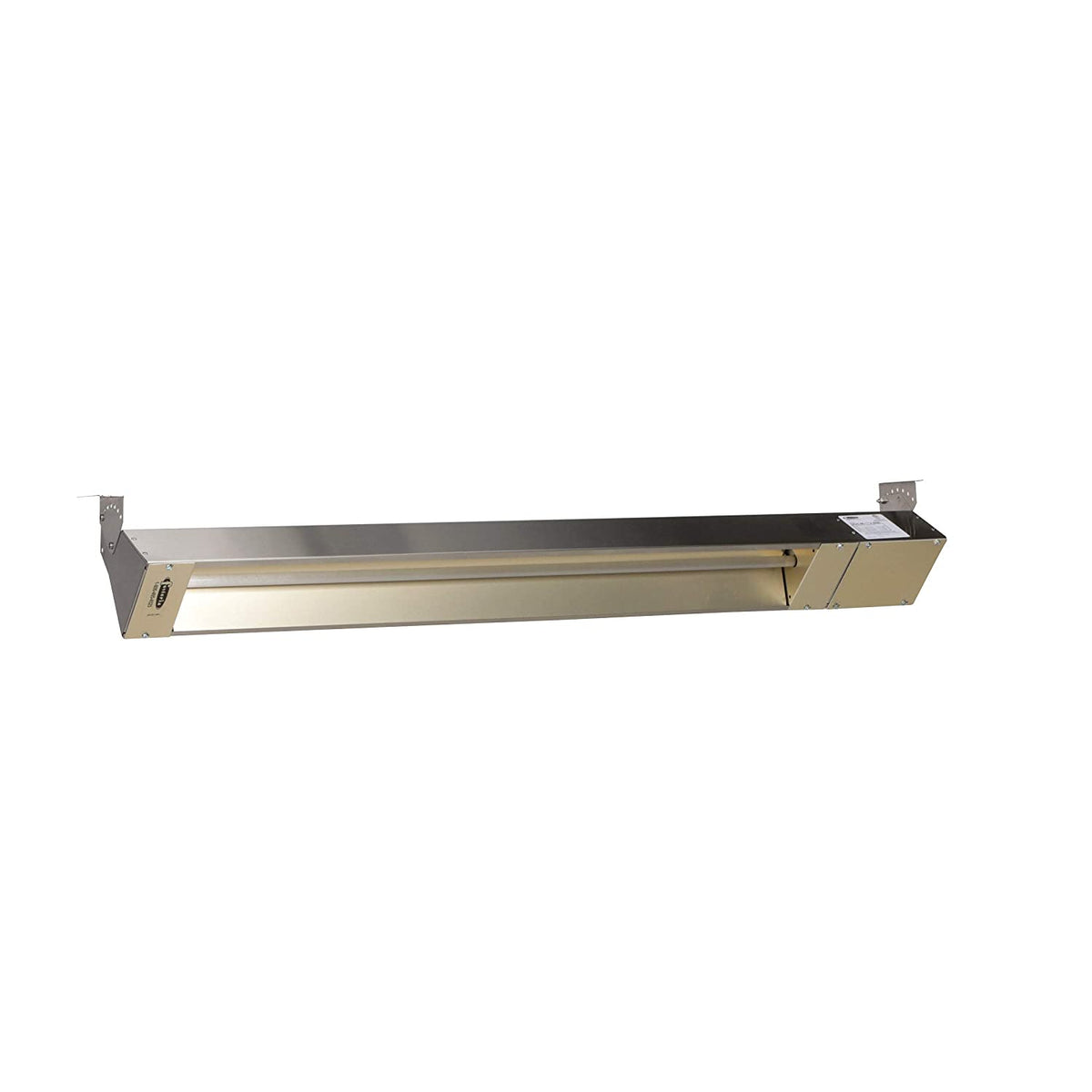

TPI OCH46120VSSE 1500W OCH Series Outdoor / Indoor Rated Quartz Electric Infrared Heater

$ 507.00 $ 324.48
Bulk Pricing: Request a Quote
  • Availability: Out Of Stock
  • Product Sku: 04805202
  • OCH Standard Model - Stainless Steel Finish
  • Frosted Quartz Tube heating element (included)
  • Listed for suspended, totally exposed (outdoor) and indoor spot heating applications
  • Finish: High-temp brown powder coated finish or corrosion resistant stainless steel 24 gauge housing
  • 60° Symmetric Heat Pattern
  • Gold anodized Aluminum reflector and end caps
  • Painted models are direct wire, unless specified and are supplied with 6” lead wires for field connection in the internal wiring compartment. These models are available with a factory installed 6’ cord set. The 208V model must have a field supplied plug.
  • Stainless steel models include an electrical enclosure assembled to the end of the heater housing and (2) 6” long lead wires for direct field connection.
  • Two 2’ ft. long mounting chains and four S-Hooks included
  • The OCH-Series can be surfaced mounted using the supplied mounting brackets which allow up to a 45° horizontal tilt adjustment.
  • Made in U.S.A.
  • Includes Electrical Enclosure
  • California residents see Prop 65 Warnings

 Catalog Number 04805202
 Model Number OCH-46-120V-SSE
 Agency Rating ETL-CUS
 Connection Type Hardwired
 Mounting Height Indoor 7' - 9'
 Wattage 1500
 BTU 5120
 Voltage 120
 Amp 12.5
 Phase 1
 Lamp Included Yes
 Lamp Type Frosted Quartz
 Lamp Element Number 1
 Lamp PN 04432302
 Length 48
 Width 5.375
 Height 6.5
 Weight (lbs) 10
