TPI Corporation

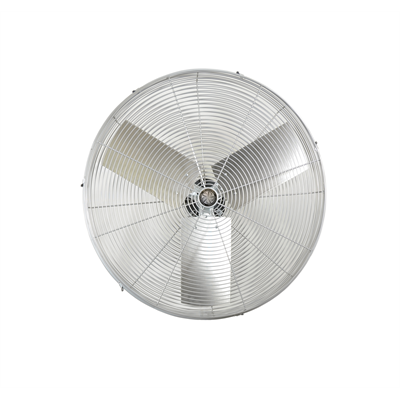

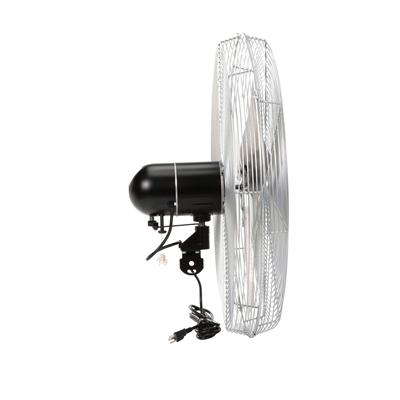

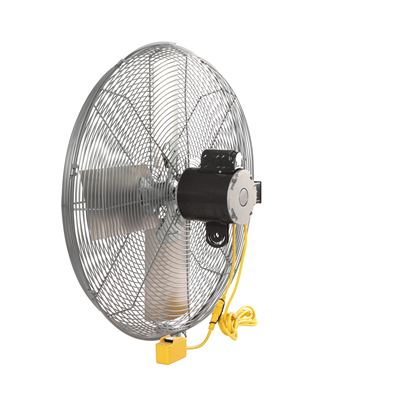

TPI IHP24H High Performance 1/3 HP Stationary Model IHP Series Circulator Head
TPI IHP24H High Performance 1/3 HP Stationary Model IHP Series Circulator Head
SKU:07989802
Regular price
$ 368.64
Regular price
$ 576.00
Sale price
$ 368.64
Out of stock
Request bulk pricing
Quantity
Couldn't load pickup availability
Product Description
- Steel construction with silver/gray powder coated; steel motor housing painted black
- Direct drive, Totally Enclosed Air-Over (TEAO) motor generating up to 12,000-CFM’s
- Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections
- All models contain a pull-chain switch and 12’ long SJT-Type cord with grounded plug
- All models, except HDH-36, contain self-locking retaining clips to secure front/rear grills and meet OSHA safety requirements
- HDH-36 model operates at 2 speeds, contains interlocking front/rear grills and includes a heavy-duty wall mounting bracket inside the carton
- HDH-GJR Series contains a 12' long SJT-Type cord with grounded plug and 18” long drop down cord assembled with an electrical (off, on low/high) switch enclosure
- Fully-Assembled ready for plug-&-play operation offered in Non-Oscillating (Stationary) and Oscillating fan heads in 20", 24" or 30” diameter sizes; mounts sold separately
- Oscillating models rotates in a 90° arc or can be locked in a fixed position
- Metal gears in the oscillating model allow the fan to operate at a maximum 30° downward tilt
- Motor warranty ranges from 1, 3 and 5-years
- Made in the U.S.A. with domestic and foreign components
- California residents see Prop 65 Warnings
| Catalog Number | 07989802 |
| Model Number | IHP 24-H |
| Agency Rating | ETL-CUS |
| Category |
High Performance 1/3 HP
|
| Fan Style Type | Assembled Circulator |
| Fan Size | 27.0" Diameter |
| Blade Size | 24 |
| Warranty | 3 Year Warranty |
| Velocity Profile CFM Area / Sq. Ft. | 6000 / 240 |
| CFM High | 4300 |
| CFM Low | 3900 |
| Depth | 14.5 |
| Motor Rating HP | 1/3 |
| Motor Volt | 120 |
| Amp | 2.8 |
| Phase | 1 |
| RPM High | 1100 |
| RPM Low | 800 |
| Speeds | 2 |
| Voltage | 120 |
| Weight (lbs) | 40 |
| Color | Gray |
