TPI Corporation

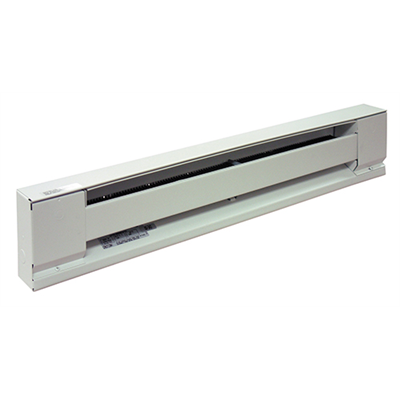

TPI H2915072SW 1500/1125W 2900S Series Electric Baseboard Stainless Steel Element Convection
TPI H2915072SW 1500/1125W 2900S Series Electric Baseboard Stainless Steel Element Convection
SKU:01052702
Regular price
$ 104.96
Regular price
$ 164.00
Sale price
$ 104.96
Out of stock
Request bulk pricing
Quantity
Couldn't load pickup availability
Product Description
- Painted 22 gauge steel front with 20 gauge junction boxes located on each end of the heater - junction boxes contain quick connect cable clamps and 6”ground lead wires.
- Over-temperature thermal limit extends entire length of heated area.
- A full length wireway provided along the back of the heater - enclosed conduit available.
- Heater can be mounted to the wall by using the key hole knockouts every 4” at the back of the heater.
- Optional In-Built thermostats field installed in the junction box.
- For high altitude applications, delete the SW in the model number and add HAW
- Height: 6”
- Depth: 2 1/2”
- Made in U.S.A.
- California residents see Prop 65 Warnings
| Catalog Number | 01052702 |
| Model Number |
H2915-072S W
|
|
Agency Rating |
ETL-CUS |
| Wattage | 1500/1125 |
| BTU | 5100/3825 |
| Voltage | 240/208 |
| Amp | 6.3/4.7 |
| Length | 72 |
| Height | 6 |
| Phase | 1 |
| Motor Weight (lbs) | 14 |
| Color | White |
