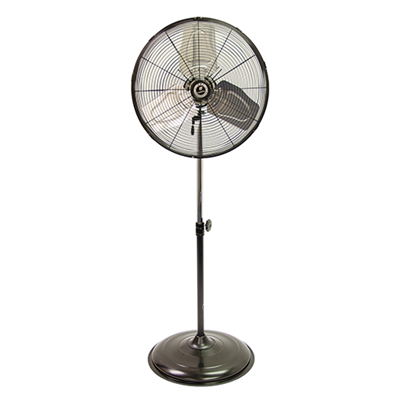

TPI CACU30PHD Pedestal Mounted Model 30" CACU Series Commercial Circulator
TPI CACU30PHD Pedestal Mounted Model 30" CACU Series Commercial Circulator
SKU:08761702
Regular price
$ 405.12
Regular price
$ 633.00
Sale price
$ 405.12
Out of stock
Request bulk pricing
Quantity
Couldn't load pickup availability
Product Description
- These circulators should be used in clean and dry commercial applications - such as schools, shops, offices or warehouses.
- Motor, blades, guards, and mount are packed and shipped in a single UPS-able carton.
- Black semi-gloss powder coated finish
- Pull chain switch.
- SJT type 3 conductor, 9’ long cord.
- Coated steel guards with retaining clips.
- Steel hub/spider aluminum paddle blades.
- Pole adjusts center of fan from 43” to 60”
- Meets OSHA standards.
- 1 Year limited warranty.
- Stocked models may differ in appearance from photograph - sizes are nominal
- Imported to TPI specifications
- CFM measured 2 feet from face of fan
- California residents see Prop 65 Warnings
| Catalog Number | 08761702 |
| Model Number | CACU 30-P-HD |
| Agency Rating | C-UL-US |
| Fan Style Type | Heavy Duty Commercial Circulator |
| Blade Size | 30 |
| Speeds | 3 |
| Velocity Profile CFM/Area Sq. Ft. | 7000 / 250 |
| CFM Low | 4200 |
| CFM Med | 4600 |
| CFM High | 5000 |
| Voltage | 120 |
| Amp | 3.6 |
| Phase | 1 |
| Motor Volt | 120 |
| Motor Rating HP | 1/3 |
| Color | Black Finish |
| Weight (lbs) | 56 |
