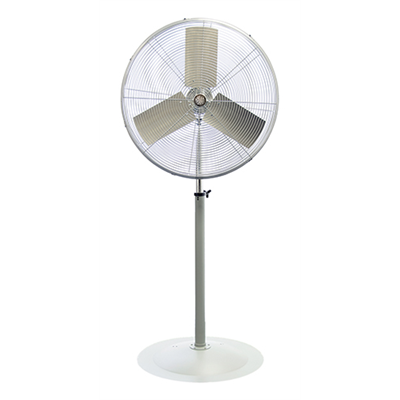

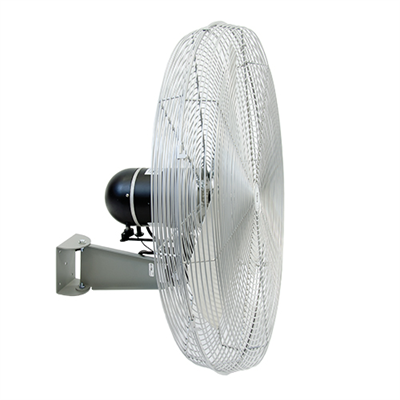

TPI ACU30P Standard ACU Series Industrial Unassembled Circulator

$ 597.00 $ 382.08
Bulk Pricing: Request a Quote
  • Availability: Out Of Stock
  • Product Sku: 07962802
  • Unassembled packaged kits, include: motor, blade, guards & mount (pedestal or wall)
  • Steel construction with silver/gray powder coated; steel motor housing painted black
  • Direct drive, Totally Enclosed Air-Over (TEAO) motor generating up to 7,200-CFM’s
  • Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections
  • All models contain a pull-chain switch and 12’ long SJT-Type cord with grounded plug
  • All models contain self-locking retaining clips to secure front/rear grills and meet OSHA safety requirements
  • Offered in Non-Oscillating (Stationary) and Oscillating fan heads in 20", 24" or 30” diameter sizes
  • Oscillating models rotates in a 90° arc or can be locked in a fixed position
  • Metal gears in the oscillating model allow the fan to operate at a maximum 30° downward tilt
  • Pedestal pole adjusts the center of fan from 48" to 67" tall; bolts to 27" diameter steel dome with 5-bolts
  • Motor warranty from 1 or 3-years
  • Made in the U.S.A. with domestic and foreign components
  • California residents see Prop 65 Warnings

 Catalog Number 07962802
 Model Number ACU 30-P
 Agency Rating ETL-CUS
 Fan Size 33.5" Diameter
 Blade Size 30
 Mounting Description Pedestal Mounted
 Fan Style Type Unassembled Circulator
 CFM High
 4300
 CFM Low 3800
 Depth
14.5
 Motor Rating HP
1/4
 Motor Volt 120
 Amp 2.7
 Phase 1
 RPM High 1100
 RPM Low 800
 Speeds 2
 Voltage 120
 Weight (lbs) 73
 Color Gray
