TPI Corporation

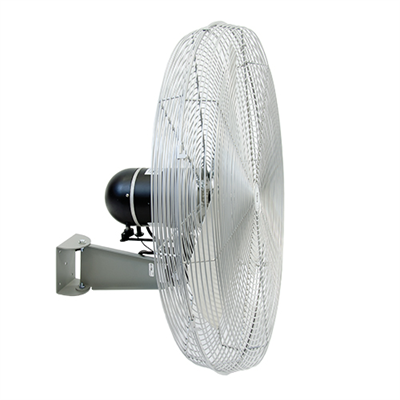

TPI ACU24W Standard ACU Series Industrial Unassembled Circulator
TPI ACU24W Standard ACU Series Industrial Unassembled Circulator
SKU:07962402
Regular price
$ 309.76
Regular price
$ 484.00
Sale price
$ 309.76
Out of stock
Request bulk pricing
Quantity
Couldn't load pickup availability
Product Description
- Unassembled packaged kits, include: motor, blade, guards & mount (pedestal or wall)
- Steel construction with silver/gray powder coated; steel motor housing painted black
- Direct drive, Totally Enclosed Air-Over (TEAO) motor generating up to 7,200-CFM’s
- Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections
- All models contain a pull-chain switch and 12’ long SJT-Type cord with grounded plug
- All models contain self-locking retaining clips to secure front/rear grills and meet OSHA safety requirements

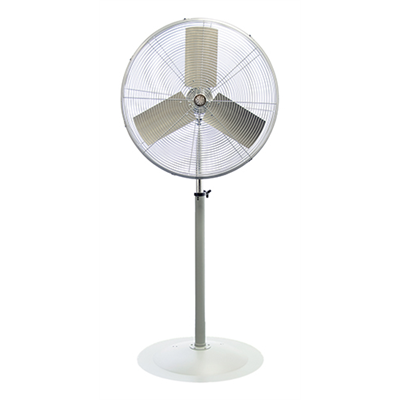

- Offered in Non-Oscillating (Stationary) and Oscillating fan heads in 20", 24" or 30” diameter sizes
- Oscillating models rotates in a 90° arc or can be locked in a fixed position
- Metal gears in the oscillating model allow the fan to operate at a maximum 30° downward tilt
- Pedestal pole adjusts the center of fan from 48" to 67" tall; bolts to 27" diameter steel dome with 5-bolts
- Motor warranty from 1 or 3-years
- Made in the U.S.A. with domestic and foreign components
- California residents see Prop 65 Warnings
| Catalog Number | 07962402 |
| Model Number | ACU 24-W |
| Agency Rating | ETL-CUS |
| Fan Size | 27.0" Diameter |
| Blade Size | 24 |
| Mounting Description | Wall Mounted |
| Fan Style Type | Unassembled Circulator |
|
CFM High |
3800 |
| CFM Low | 3400 |
| Depth |
14.5
|
| Motor Rating HP |
1/4
|
| Motor Volt | 120 |
| Amp | 2.5 |
| Phase | 1 |
| RPM High | 1000 |
| RPM Low | 800 |
| Speeds | 2 |
| Voltage | 120 |
| Weight (lbs) | 45 |
| Color | Gray |
