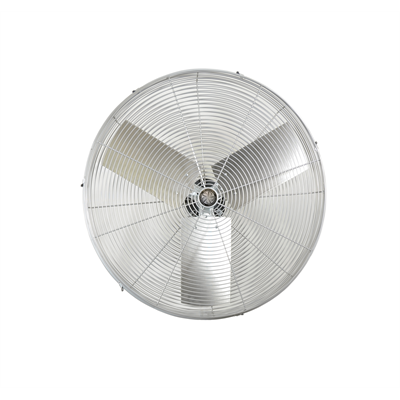

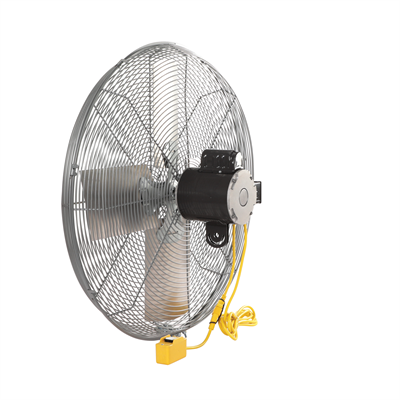

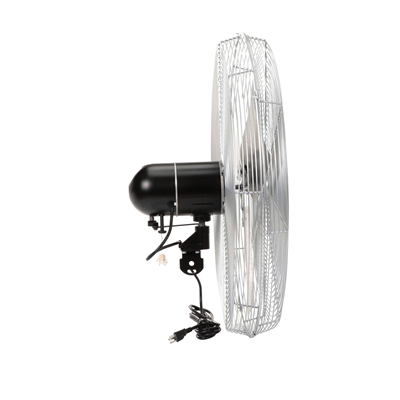

TPI ACH30 Standard 1/4 HP Industrial Stationary Model ACH Series Circulator Head

$ 467.00 $ 298.88
Bulk Pricing: Request a Quote
  • Availability: Out Of Stock
  • Product Sku: 07961702
  • Steel construction with silver/gray powder coated; steel motor housing painted black
  • Direct drive, Totally Enclosed Air-Over (TEAO) motor generating up to 12,000-CFM’s
  • Aluminum 3-paddle blade system with steel hub and cast aluminum spider connections
  • All models contain a pull-chain switch and 12’ long SJT-Type cord with grounded plug
  • All models, except HDH-36, contain self-locking retaining clips to secure front/rear grills and meet OSHA safety requirements
  • HDH-36 model operates at 2 speeds, contains interlocking front/rear grills and includes a heavy-duty wall mounting bracket inside the carton
  • HDH-GJR Series contains a 12' long SJT-Type cord with grounded plug and 18” long drop down cord assembled with an electrical (off, on low/high) switch enclosure
  • Fully-Assembled ready for plug-&-play operation offered in Non-Oscillating (Stationary) and Oscillating fan heads in 20", 24" or 30” diameter sizes; mounts sold separately
  • Oscillating models rotates in a 90° arc or can be locked in a fixed position
  • Metal gears in the oscillating model allow the fan to operate at a maximum 30° downward tilt
  • Motor warranty ranges from 1, 3 and 5-years
  • Made in the U.S.A. with domestic and foreign components
  • California residents see Prop 65 Warnings

 Catalog Number 07961702
 Model Number ACH 30
 Agency Rating ETL-CUS
 Category Industrial 1/4 HP
Fan Style Type Assembled Circulator
 Fan Size 33.5" Diameter
 Blade Size 30
 Warranty 1 Year Warranty
 Velocity Profile CFM Area / Sq. Ft. 7200 / 250
 CFM High 4300
 CFM Low 3800
 Depth 14.5
 Motor Rating HP 1/4
 Motor Volt 120
 Amp 2.7
 Phase 1
 RPM High 1100
 RPM Low 800
 Speeds 2
 Voltage 120
 Weight (lbs) 44
 Color Gray
