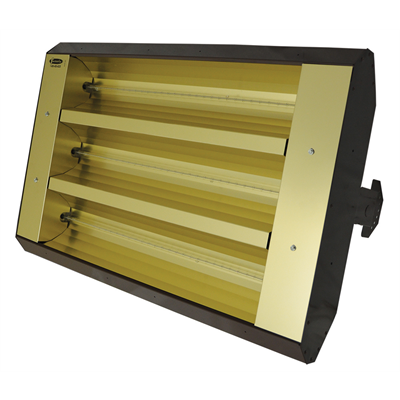

TPI 46390THSS480V THSS Series Mul-T-Mount Electric Infrared Heater

$ 2,395.00 $ 1,532.80
Bulk Pricing: Request a Quote
  • Availability: Out Of Stock
  • Product Sku: 88109394
  • Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications
  • Listed for recessed applications
  • 20 gauge powder coated steel or stainless steel housings
  • Gold anodized Aluminum reflectors & end caps
  • 50% higher wattage densities for 3-element units
  • 3-Lamp wiring, three or single phase
  • Stainless steel models have non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. Durable in harsh atmospheres & outdoor environments
  • High temperature lead wires
  • Clear 12mm diameter Quartz Lamp(s) Included
  • Elements provide a bright light, generating 8-lumens per watt
  • Made in U.S.A.
  • California residents see Prop 65 Warnings

3-Lamp Mul-T-Mount Series - With (3) Clear 12mm Quartz Lamps Included
  • 600-Volt Models also available, contact factory for more information
  • Asymmetrical pattern units are also available for 30° & 60°
  • Made in U.S.A.


 Catalog Number 88109394
 Model Number 463-90-THSS-480V
 Agency Rating ETL-CUS
 KW
10.95
 BTU 37372
 Voltage 480
 Phase 1 or 3
 Reflective Pattern 90 Deg Symmetrical
 Lamp Included Yes
 Lamp Type Quartz
 Lumens 8/WATT
 Lamp Number 3
 Lamp PN 04406702
 Height 11
 Length 46
 Width 21.5
 Mounting Height Indoor Consult Factory
 Weight (lbs) 41
