TPI Corporation

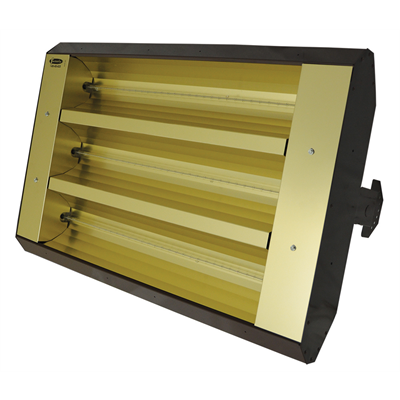

TPI 46390TH480V TH Series Mul-T-Mount Electric Infrared Heater
TPI 46390TH480V TH Series Mul-T-Mount Electric Infrared Heater
SKU:04877102
Regular price
$ 1,324.16
Regular price
$ 2,069.00
Sale price
$ 1,324.16
Out of stock
Request bulk pricing
Quantity
Couldn't load pickup availability
Product Description
- Listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow & ice control applications
- Listed for recessed applications
- 20 gauge powder coated steel or stainless steel housings
- Gold anodized Aluminum reflectors & end caps
- 50% higher wattage densities for 3-element units
- 3-Lamp wiring, three or single phase
- Stainless steel models have non-corrosive housing, hardware and brackets; no ferrous metals used in the unit. Durable in harsh atmospheres & outdoor environments
- High temperature lead wires
- Clear 12mm diameter Quartz Lamp(s) Included
- Elements provide a bright light, generating 8-lumens per watt
- Made in U.S.A.
- California residents see Prop 65 Warnings
3-Lamp Mul-T-Mount Series - With (3) Clear 12mm Quartz Lamps Included
- 600-Volt Models also available, contact factory for more information
- Asymmetrical pattern units are also available for 30° & 60°
- Made in U.S.A.
| Catalog Number | 04877102 |
| Model Number | 463-90-TH-480V |
| Agency Rating | ETL-CUS |
| KW |
10.95
|
| BTU | 37372 |
| Voltage | 480 |
| Phase | 1 or 3 |
| Reflective Pattern | 90 Deg Symmetrical |
| Lamp Included | Yes |
| Lamp Type | Quartz |
| Lumens | 8/WATT |
| Lamp Number | 3 |
| Lamp PN | 04406702 |
| Height | 11 |
| Length | 46 |
| Width | 21.5 |
| Mounting Height Indoor | Consult Factory |
| Weight (lbs) | 41 |
