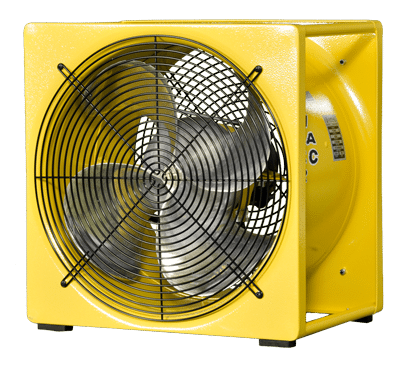

Super Vac HF124 12" Standard Motor HF Series Confined Space Fan

$ 2,639.00
Bulk Pricing: Request a Quote
  • Availability: In Stock
  • Product Sku: HF124
Quantity
Shopify secure badge

The HF124 is a 12” electric, high-speed, conned space fan that delivers the perfect combination of size and power in an everyday ventilator. Super Vac’s F Series fans provide unmatched durability; the entire frame is constructed of steel, and the patented 4-tip recurve aluminum blade is precision balanced for maximum output.

Features:

  • Patented 4-Tip Recurved Aluminum Blade: Creates a tight spiral of air to eject smoke and fumes away from the building while providing high-velocity screw action to sweep air back over the motor; aluminum holds up better than plastic in high heat
  • Precision-Balanced Blade: Maximizes output
  • Steel frame with heavy-gauge steel grill and baked-on powder coat: Ensures a long-lasting finish
  • Heavy-Duty Rubber Feet: Friction keeps fan in place
  • 4 Carry Handles: Makes transportation easy with one or two people
  • Front and Rear Guards: Prevents accidental contact with key components


Compatible with these Super Vac Accessories:
Spiral Duct, Mountain Mister, Tilt Frame and Door Bar/Hanger

12" Blades- H x W x D: 15.5" x 15" x 13" - 395 mm x 380 mm x 330 mm

Weight 40 lbs
18 kg
Motor Bluffton, high speed, TEAO, 1/2 HP, 50/60Hz, 115/230V AC
 RPM 3,450
 Start 2,000 w
15-amp circuit
 Run 800 w
  Output 3,700 cfm
6,285 cmh
