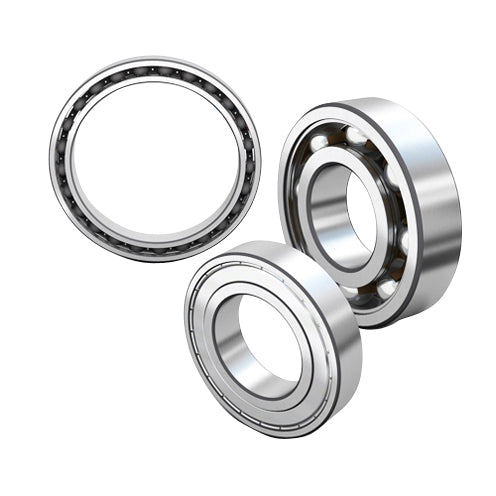

SKF 6304 NRJEM Radial/Deep Groove Ball Bearing

• Deep groove ball bearings are used in a particularly wide variety of applications
• Consequently, they are available in many executions and sizes
• Open Bearing: Prefix designation Null
• Sealed on Both Sides: Prefix designation 2RS
• Shielded on Both Sides: Prefix designation 2Z
• Snap Ring Groove: Prefix designation NR

Specification:

• Bore Diameter: 20 mm
• Static Load Capacity: 7. kN
• Outside Diameter: 52 mm
• Precision Rating: ABEC 3 (ISO Class 6)
• Overall Width: 15 mm
• Finish/Coating: Uncoated
• Bore Type: Round
• Cage Material: Steel
• Closure Type: Open
• Outer Ring Width: 15 mm
• Row Type & Fill Slot: Single Row Non-Fill Slot
• Fillet Radius: 1 mm
• Snap Ring Included: With Snap Ring
• Maximum rpm: 19000 RPM
• Internal Clearance: C3
• Series: 63
• Dynamic Load Capacity: 16. kN
