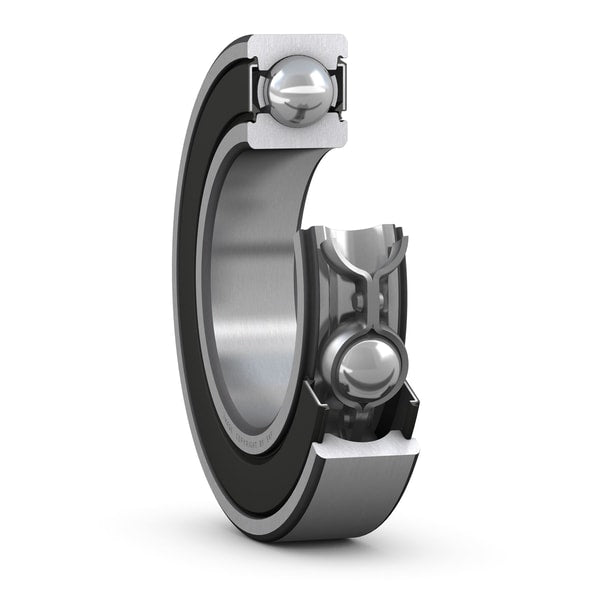

SKF 6205-2RSH/C3GJN Deep Groove Ball Bearing with Seals

Single row deep groove ball bearings with seals on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

• Integral sealing prolongs bearing service life

• Simple, versatile and robust design

• Low friction and high-speed capability

• Accommodate radial and axial loads in both directions

• Require little maintenance

Dimensions:

Bore diameter: 25 mm
Outside diameter: 52 mm
Width: 15 mm

Properties:

Filling slots: Without
Number of rows: 1
Locating feature, bearing outer ring: Without
Bore type: Cylindrical
Cage: Sheet metal
Matched arrangement: No
Radial internal clearance: C3
Material, bearing: Bearing steel
Coating: Without
Sealing: Seal on both sides
Sealing type: Contact
Lubricant: Grease
Relubrication feature: Without
Indicative product carbon footprint to manufacture: 0.464 kg CO2e

Performance:

Basic dynamic load rating: 14.8 kN
Basic static load rating: 7.8 kN
Reference speed: 28 000 r/min
Limiting speed: 8 500 r/min
SKF performance class: SKF Explorer

Logistics:

Product net weight: 0.129 kg
eClass code: 23-05-08-01
UNSPSC code: 31171504
