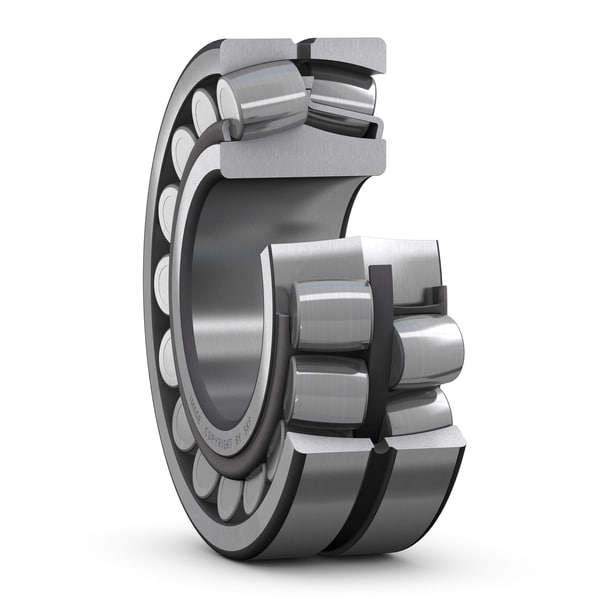

SKF 22313 E/C3 Spherical Roller Bearing

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

• Accommodate misalignment

• High load carrying capacity

• Relubrication features

• Low friction and long service life

• Increased wear resistance

Dimensions:

Bore diameter: 65 mm
Outside diameter: 140 mm
Width: 48 mm

Performance:

Basic dynamic load rating: 357 kN
Basic static load rating: 360 kN
Reference speed: 3 800 r/min
Limiting speed: 5 000 r/min
SKF performance class: SKF Explorer

Properties:

Number of rows: 2
Locating feature, bearing outer ring: Without
Bore type: Cylindrical
Cage: Sheet metal
Radial internal clearance: C3
Tolerance class for dimensions: Normal
Tolerance class for run-out: P5
Sealing: Without
Lubricant: None
Relubrication feature: With
Indicative product carbon footprint to manufacture: 12.6 kg CO2e

Logistics:

Product net weight: 3.5 kg
eClass code: 23-05-09-11
UNSPSC code: 31171510
