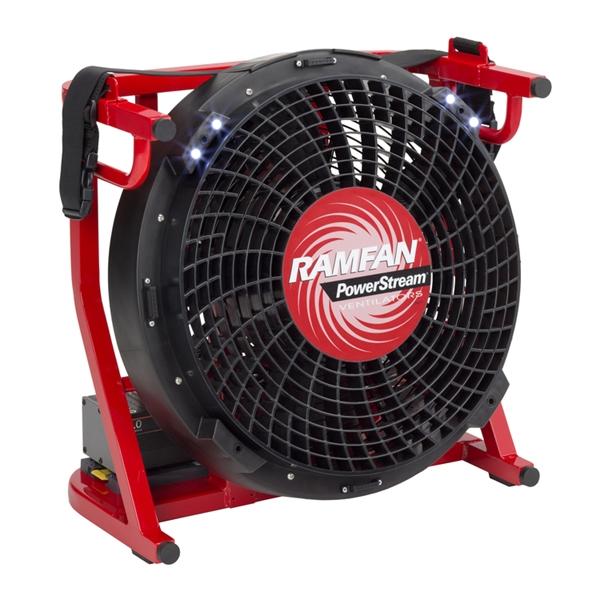

RAMFAN EL6525 EX150Li All-Terrain Edition
RAMFAN EL6525 EX150Li All-Terrain Edition
SKU:EL6525
In stock
Request bulk pricingCouldn't load pickup availability
Product Description
The All-Terrain features massive 8.5” x 2.5” wheels and a 115-degree approach angle to tackle obstacles without any frame impact or sinking in the soft stuff.
EX150Li All-Terrain is for fire departments with varied structure approached in their response area, 4-season weather where mud, snow, or other soft surfaces are likely to be encountered, and those who want to be ready for anything.
Intuitive user interface for 1, 2, GO operation. Two large, hard-anodized control knobs give users the ultimate in glove-compatible fan control.
Specifications:
| Model | EX150Li-AT |
| Item Number | EL6525 |
| Nominal Diameter | 18” / 460mm |
| Motor | 1.9hp Brushless |
| Controller Platform | Intellisense E3 |

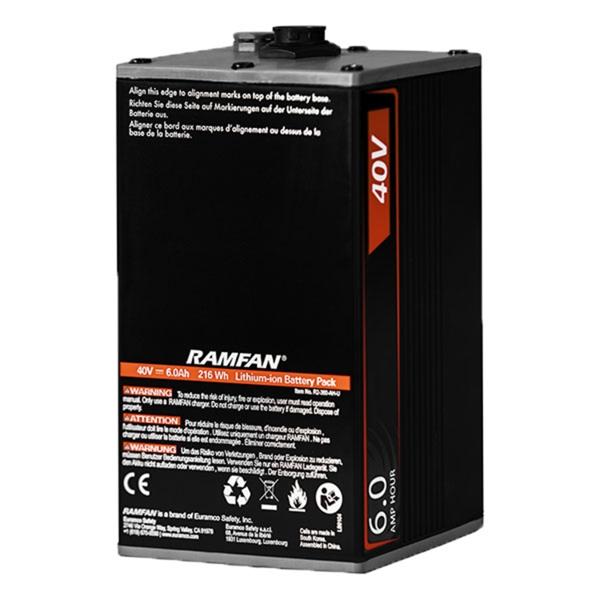

| Battery System Design | RAMFAN 52V (2 simultaneously) |
| Runtime | 45 minutes (two batteries) |
| On-tool Charging | 1.5A per battery, simultaneous charge |
| Ingress Protection | IP66 |
| Weight (incl. batteries) | 77 lbs / 36kg |
| Dimensions (h x w x d) | 23 x 21 x 20 in / 58 x 53 x 50 cm |
| AMCA 240-15 Verified Airflow | 12,377 cfm 21,029 m3/hr |
What’s New?
Redundant BMS for maximum reliability
Redundant battery protections, on battery packs and fan controller, maximize reliability of your critical tools.
On-tool Charging
Charge batteries, simultaneously, at 1.6A per pack, without removing from fan.
PRO//connect compatibility
Plug into your fan for real-time diagnostics and troubleshooting data.
Easy Start-Up...1, 2, GO!
Large control knobs
PowerSense™ Speed Management
2x Battery >> MAX power with ECO mode
AC input >> MAX power with ECO mode
1x Battery >> ECO mode to limit discharge current per cell
