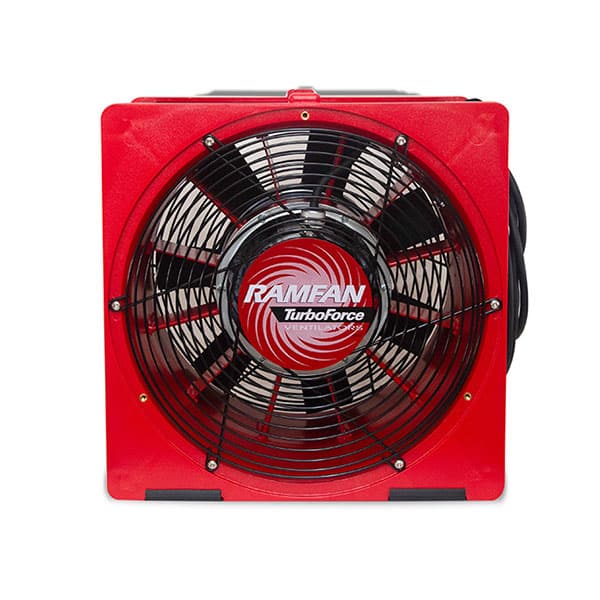

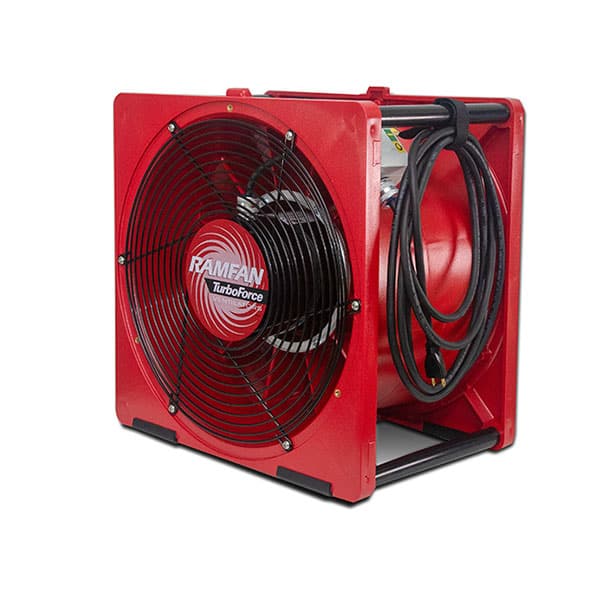

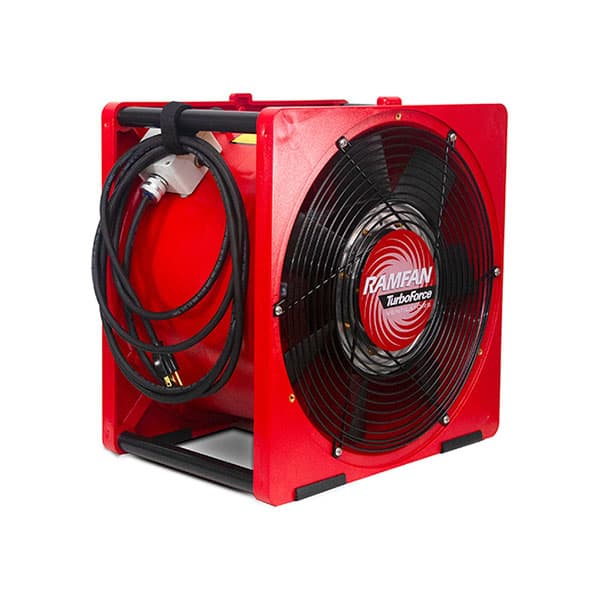

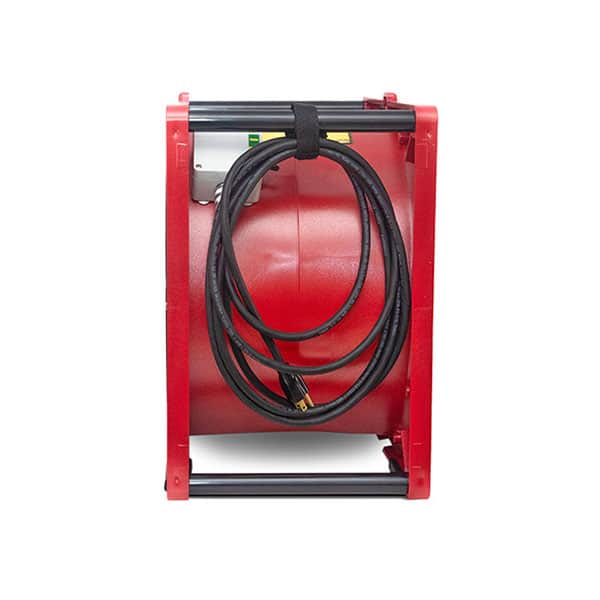

RAMFAN EFC150x 16" Fire Rescue Smoke Ejector
RAMFAN EFC150x 16" Fire Rescue Smoke Ejector
SKU:EG8000X
Regular price
$ 3,169.20
Regular price
$ 3,336.00
Sale price
$ 3,169.20
Out of stock
Request bulk pricing
Quantity
Couldn't load pickup availability
Product Description
These EFCx Series Smoke Ejectors are built with a high-impact, heat-resistant Lexan® housing and an UL/IECEx/ATEX-certified explosion-proof motor for use in areas where potentially explosive gasses are unlikely to be present; establishing and ensuring a safer work environment.
The Polymer TurboForce™ impeller is engineered to enhance performance as well as maximizing the airflow; allowing the smoke ejection time to reduce dramatically and bringing fresh air into the confined space more effectively.
Specifications:
| Model | EFC150x |
| Part | EG8000X |
| Weight | 55 lbs / 25 kg |
| Dimensions (h/w/d) | 19 x 18 x16 in 48 x 46 x 31 cm |
|
Amps: Start Run |
115V: 80A 115V: 15A |
| Motor | 1.5 Hp / 1.1 kW |
| Noise | 90.2 dB @ 3' (1 m) |
| Electric | 115/230V, 1ø, 50/60Hz |
| Approvals | CE, 3X, IEC, IECEx |
| Airflow | |
| Free Air | 4,459 cfm (7,580 m3/hr) |
|
Through Duct 15’/4.6 m w/ one 90° turn: |
3,179 cfm (5,404 m³/hr) |
