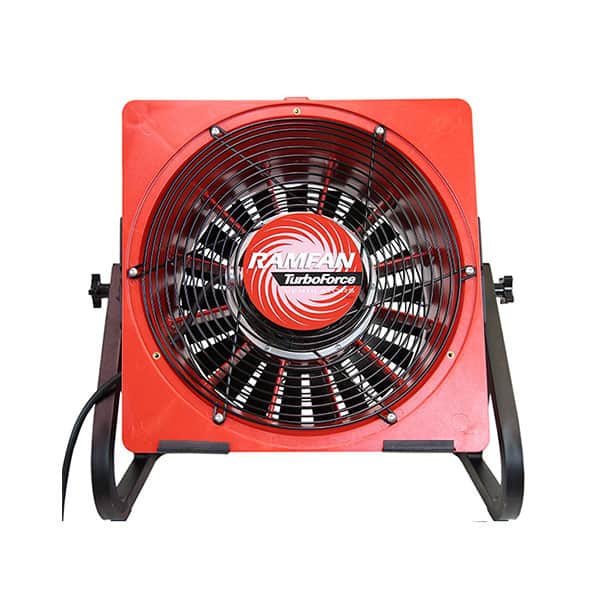

RAMFAN EFC150 16'' 1.5HP High Capacity Smoke Ejector
RAMFAN EFC150 16'' 1.5HP High Capacity Smoke Ejector
SKU:EG8000
Regular price
$ 2,404.45
Regular price
$ 2,531.00
Sale price
$ 2,404.45
Out of stock
Request bulk pricing
Quantity
Couldn't load pickup availability
Product Description
These EFC Series Smoke Ejectors are built with a high-impact, heat-resistant Lexan® housing for use in confined space for venting non-hazardous airborne vapors and particulates.
The Polymer TurboForce™ impeller is engineered to enhance performance as well as maximizing the airflow. With the high velocity airflow, it allows the fan to reduce its smoke ejection time effectively during ventilation.
Specifications:
| Model | EFC150 |
| Part | EG8000 |
| Weight | 61 lbs / 28 kg |
| Dimensions (h/w/d) | 19 x 18 x 12 in 48 x 46 x 31 cm |
|
Amps: Start Run |
115V: 80A 115V: 15A |
| Motor | 1.5 Hp / 1.1 kW |
| Noise | 90.2 dB @ 3' (1 m) |
| Electric | 115/230V, 1ø, 50/60Hz |
| Airflow | |
| Free Air | 4,459 cfm (7,580 m3/hr) |
|
Through Duct 15’/4.6 m w/ one 90° turn: |
3,179 cfm (5,404 m³/hr) |
