Ramfan EFi120XX 40cm 1.2HP Haz. Loc. Blower

$ 4,300.00 $ 4,085.00
Bulk Pricing: Request a Quote
  • Availability: In Stock
  • Product Sku: EA8120XX-110
Size
Quantity
Shopify secure badge

The electric powered EFixx Series hazardous location blowers/exhausters, with whole-unit certification, are intended for use in Adverse Atmospheres in accordance with the limitations of the rating. The whole-unit certification not only provides protection and peace of mind to the user; it also prevents suppliers from being linked to the chain of liability.

The largest hazardous location blowers for highest volume of air movement. Use the EFi50xx (0.5 Hp) when you need a high volume, low velocity, somewhat gentler flow; or the EFi150xx (1.5 Hp) model for higher velocities, increased volumes and reduced purge or cooling times. 16" (40 cm) integrated duct adapters. Stackable in storage or during operation.



Features and Benefits:

  • High pressure axial blower
  • Durable, PC/ABS anti-static casing is weatherproof, dent resistant, v0 flame retardant and chemical resistant
  • 2 integrated duct adapters
  • IP55 rain switch enclosure

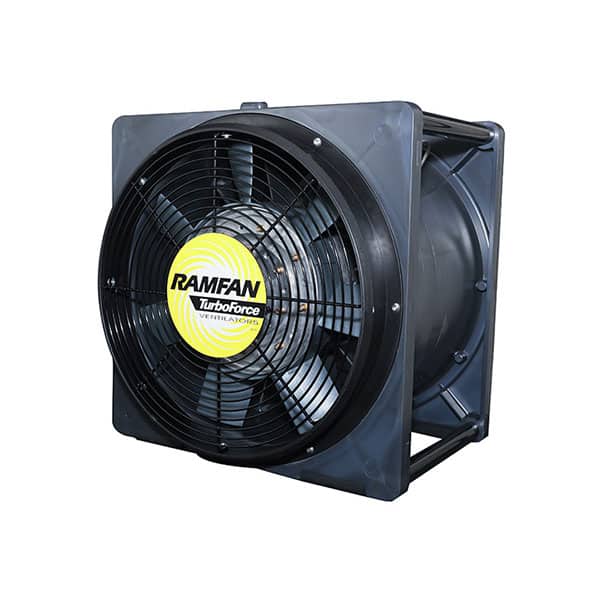

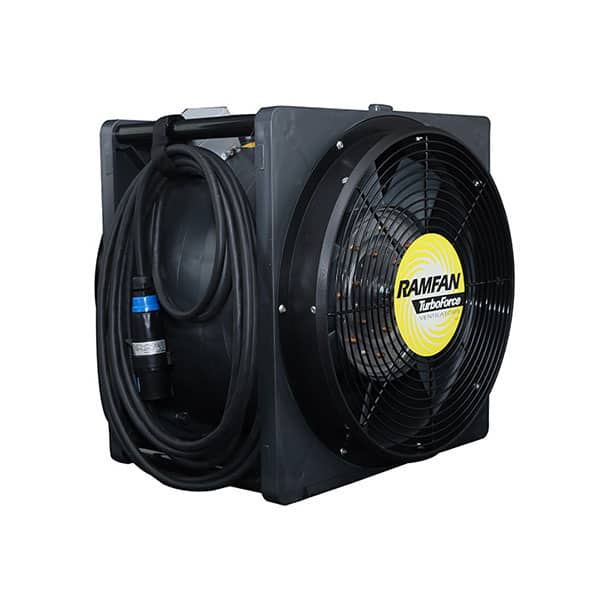

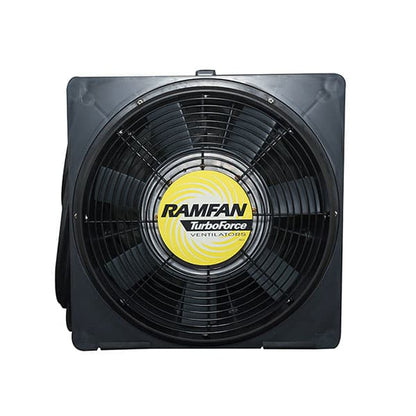

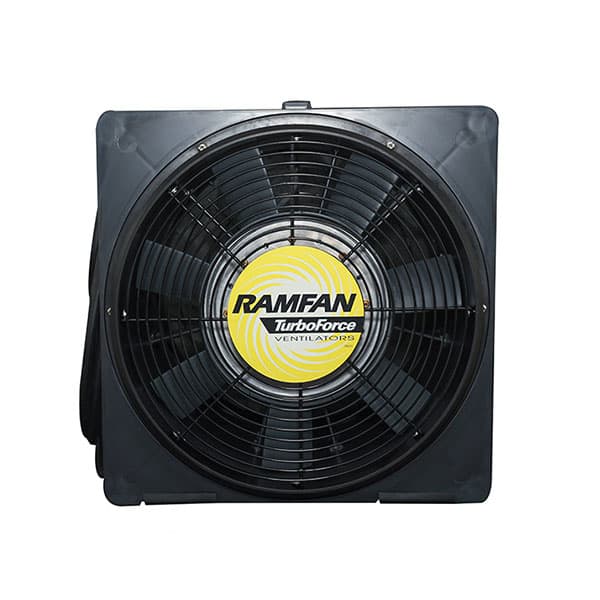

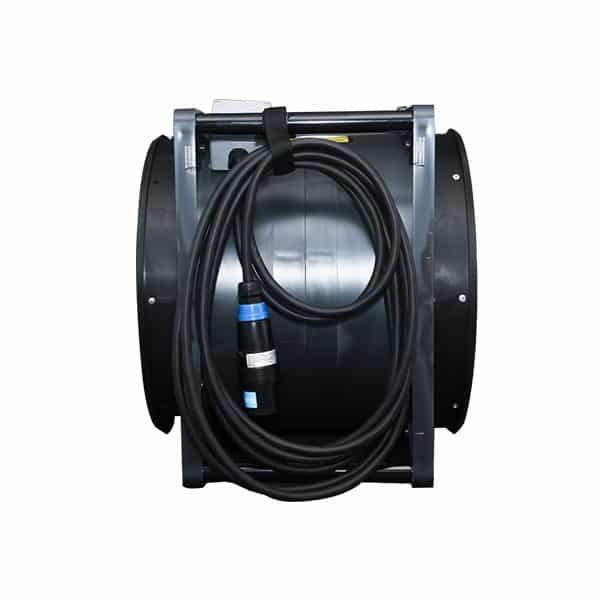

Ramfan EFi50xx 16" Hazardous Location Blower.jpg



Specifications:

Model EA8120XX (240V)  EA8120XX-110 (110V)
Part EA8120XX
Ships as 240V 		EA8120XX-110
Ships as 110V
Motor 1.2 hp / 0.9 kW 1.2 hp / 0.9 kW
Motor Type Totally Encapsulated Air Flame Proof Totally Encapsulated Air Flame Proof
Electric 110/240V, 1ø, 50Hz 110/240V, 1ø, 50Hz
Amps (Start/Run) 27A / 5A 54A / 10A
Cable 14AWG/2.5mm2 14AWG/2.5mm2
Plug Types A.T.X. 240V A.T.X.
100/130V
Operating
Temperature		 -4°F to +104°F / -20°C to +40°C -4°F to +104°F / -20°C to +40°C
Noise 86.1 dB @ 3′ (1 m) 86.1 dB @ 3′ (1 m)
Weight 55 lbs / 25 kg 55 lbs / 25 kg
Dimensions (h/w/d) 19 x 18 x16 in / 48 x 46 x 41 cm 19 x 18 x16 in / 48 x 46 x 41 cm
Impeller 7-Blade 7-Blade
Free Air 3750 Cfm (6375 M³/Hr) 3750 Cfm (6375 M³/Hr)
15’/4.6 M W/ One 90° Turn 2700 Cfm (4590 M³/Hr) 2700 Cfm (4590 M³/Hr)
