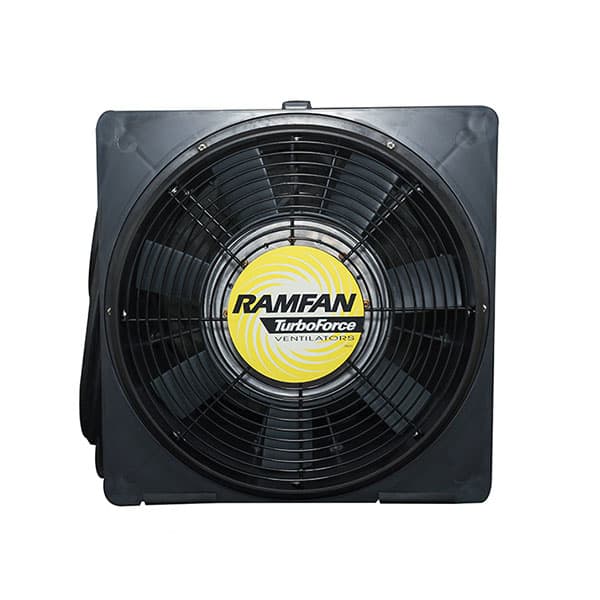

Ramfan EFi50xx 16" Hazardous Location Blower
- Availability: In Stock
- Product Sku: EA8000XX
The electric powered EFixx Series hazardous location blowers/exhausters, with whole-unit certification, are intended for use in Adverse Atmospheres in accordance with the limitations of the rating. The whole-unit certification not only provides protection and peace of mind to the user; it also prevents suppliers from being linked to the chain of liability.
The largest hazardous location blowers for highest volume of air movement. Use the EFi50xx (0.5 Hp) when you need a high volume, low velocity, somewhat gentler flow; or the EFi150xx (1.5 Hp) model for higher velocities, increased volumes and reduced purge or cooling times. 16" (40 cm) integrated duct adapters. Stackable in storage or during operation.

Specifications:
| Model | EFi50xx |
| Part | EA8000XX Ships as 115V |
| Motor | 0.5 hp / 0.37 kW |
| Motor Type | Totally Encapsulated Air Flame Proof |
| Electric | 115/230V, 1ø, 50/60Hz |
| Amps (Start/Run) | 25A / 6A |
| Cable Lengths | 30'/9m, 14AWG/2.5mm2 |
| Plug Types | Not Included |
| Operating Temperature | -22°F to +104°F / -30°C, to +40°C |
| Noise | 90.2 dB @ 3' (1 m) |
| Weight | 49 lbs / 22 kg |
|
Dimensions (h x w x d) |
19 x 18 x16 in / 48 x 46 x 41 cm |
| Impeller | 21-Blade |
