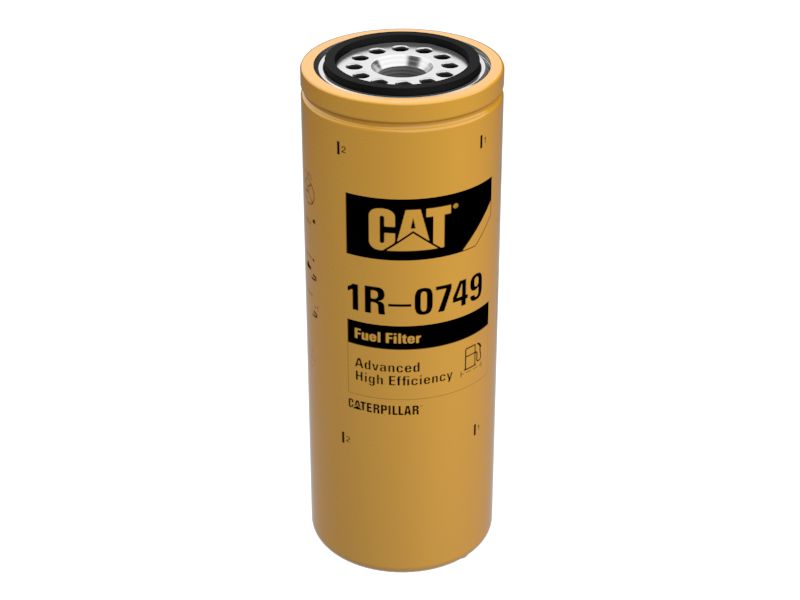

CAT 1R-0749 Fuel Filter

$ 28.38
+ Free Shipping
Bulk Pricing: Request a Quote
  • Availability: In Stock
  • Product Sku: 1R-0749-1Pack
Save With Multi Packs
Shopify secure badge

Advanced Efficiency Fuel Filter

The Cat 1R-0749 Fuel Filter is designed to protect your sensitive fuel injectors and save you time and money from premature damage and repair.

Contaminants such as dirt and dust can taint fuel because of improper shipping or simply filling up the tank. CAT Advanced Efficiency Fuel Filters protect finely tuned engine components from harmful debris.

Are you replacing fuel injectors too often? This may be due to fuel system contamination.

Without a proper fuel filter your engine can become clogged with unwanted debris, such as dust and rust. The result is restricted fuel flow and diminished performance as your engine struggles to draw ample fuel to continue operating.

Precise engineering leave less room between engine components. This makes even the smallest contaminants destructive.

Original Cat filters provide the superior quality and protection you need to maximize your engine's life.

These are some of the features which make Caterpillar fuel filters superior:

  • Acrylic beads to prevent pleat bunching
  • Spiral roving for greater pleat stability
  • A nylon center tube to prevent metal contamination
  • Molded end caps to prevent leaks

Keep your machine running at peak performance by using genuine Cat fuel filters.


  • AGCO: 1R0749, 715132
  • ATLAS COPCO: 1R0749
  • BALDWIN: BF7587
  • BIG A: 95674
  • CAMECO: 61373891
  • CARQUEST: 86674, 86674MP
  • FLEETGUARD: FF5308, FF5319, FF5473, FF5473S1
  • FLEETRITE: FFR85308, FFR85319, FFR85473, FFR85473S1
  • FRAM: P8335
  • HASTINGS: FF1056
  • INGERSOLL RAND: 35362243, 57294829
  • LOESING: 025133
  • MACK: 2191P551311
  • MORBARK: 29245971
  • NAPA: 3674, 3674MP
  • PUROLATOR: F75185
  • SCHUPP AG: SK3484
  • TAMROCK: 019854051
  • VMC: FF551311
  • VOLVO: 85114045
  • WIRTGEN: 119391
  • WIX: 33674, 33674MP



  • CARQUEST 86674MP
  • ATLAS COPCO 3222309421
  • BIG A 95674
  • CARQUEST 86674
  • CHAMP LFF2749
  • INGERSOLL-RAND 57294829
  • INGERSOLL-RAND 35362243

For use on C-16 all serials; C-15 all serials; C-13 all serials; C-12 all serials; C-11 KCA; C-10 all serials; 3406E all serials; 3176 all serials.



Wheel-Type Loader
950H 962H 966H 972H 980C 980F 980F II 980G 980G II 980H 980K 980M 980K HLG 980L 982M 986H 988B 988F 988F II 988G 988K 990 990 II 992C 992D

65C 65D 75C 75D 85C 85D

Engine - Generator Set
3406B 3406C 3408 3408B 3408C 3412 3412C 3456 3508 3508B 3512 3512B 3516 3516B C-12 C13 C13 XQ350 C13 XQ375 C13GENSET C15 C18 C9 C9.3 D400GC D450GC PM3412 PM3456 POWER SYS SR4

Off-Highway Truck
69D 768C 769C 769D 770G 770G OEM 771C 771D 772B 772G 772G OEM 773B 773D 773E 773GC 775B 775D 775E

Engine - Machine

Track-Type Loader

Engine - Industrial
3126B 3176B 3176C 3196 3304 3304B 3306 3306B 3406 3406B 3406C 3406E 3408 3408B 3408C 3408E 3412 3412C 3412D 3412E 3456 3508 3516 C-10 C-12 C-15 C-16 C-18 C-9 C11 C13 C13B C15 C15 I6 C16 C18 C18 GEN SE C18 GENSET C18 I6 C9 C9.3 C9.3B CPT372 D350GC D400GC D450GC D500GC D550GC D600 GC G3406 HT400 PM3412 SBF214 SCT673 SPS342 SPT342 SUF557 XQ425

Articulated Dump Truck
725 725C 725C2 730 730C 730C2 730C2 EJ 735 735B 740 735C 740 GC 740B 740C 745 745C D350E D350E II D400E D35HP D400 D400D D400E II D40D

Road Reclaimer
RM-250C RM-350 RM-350B RM500B RR-250 RR-250B SM-350 SS-250 SS-250B

Motor Grader
120K 120K 2 12K 12M 140 140K 140K 2 140M 14L 14M 14M-3 14M3 150 160 160K 160M 16G 16H NA 16M3 18M3 24H

Material Handler
C9 MH3295

Underground Articulated Truck
AD30 AD40 AD45 AD45B AD55 AE40 AE40 II

235B 235C 235D 245B 245D 336E 336E H 336E HVG 336E L 336E LH 336E LN 336E LNH 336F 336F L 336F L XE 336F LN 336F LN XE 336F LNXE 336F XE 336FMHPU 340F 340F L LRE 340F L UHD 349E 349E L 349E L HVG 349E L VG 349F 349F L 349F LXE 352F 352F OEM 352F XE VG 352F-VG 352FMHPU 374F 374F L 375-A 375-A L 385C 390F 390F L 5080 5110B 568 FM 568 FM LL

Wheel Tractor-Scraper
621 621B 621E 621F 621G 621H 621K 621K OEM 623B 623E 623F 623G 623H 623K 623K LRC 627B 627E 627F 627G 627H 627K 627K LRC 631D 631E 631K 631G 633D 633E II 637D 637E 637G 637K 639D 651B 651E 657 657B 657E

Earthmoving Compactor
825G 825C 825K 826C 826G 826G II 826K 836 836G 836K


Engine - Truck
3176 3406B 3406C 3406E C-10 C-12 C11 C13

Petroleum Products
3412E C-15 C15 C18 C9 CX31-C11I CX31-C13I CX31-C15I CX31-C18I CX31-C9I CX35-C18I CX35-P800 TH31-C9I TH31-C9P TH31-E61 TH35-C11I TH35-C13I TH35-C13T TH35-C15T TH35-E81 TH48-E80

Cold Planer
3208 3412 PM-465 PM-565 PM-565B PM310 PM312 PM313 PM620 PM622 PM820 PM822 PR-1000 PR-1000C PR-450 PR-450C PR-750B

Forest Products
2864C 586C

Wheel Dozer
824C 824G 824G II 824K 834B 834G 834K 834S 834U 844 854G

572R 572R II 578 583R 587R 589 PL72 PL83 PL87

Marine Products
3176B 3176C 3196 3304B 3306 3306B 3406B 3406C 3406E 3408 3408B 3408C 3412 3412E C12 C30 C32

Track-Type Tractor
10 10SU 10U 57H 58 59 58L 59L 59N 8 8A 8S 8SU 8U 9 9SU 9U D10N D10R D6 D6 XE D6R D6T D6T LGP D6T LGPPAT D6T XL D6T XL PAT D6T XW D6T XW PAT D6XE D7E D7E LGP D7H D7R D7R II D7R SERIES D8L D8N D8R D8R II D8T D9L D9N D9R D9T

Expanded Mining Products
6015 6015 FS 6018 MD5125 MD5150C MD6200 MD6290

Load, Haul, Dump
R1600 R1700 II R1600G R1700G R1700K R2900 R2900G

* All fitment filter part numbers are based on your engine serial number.
* Please confirm with our team if you are unsure this filter will fit your engine.
