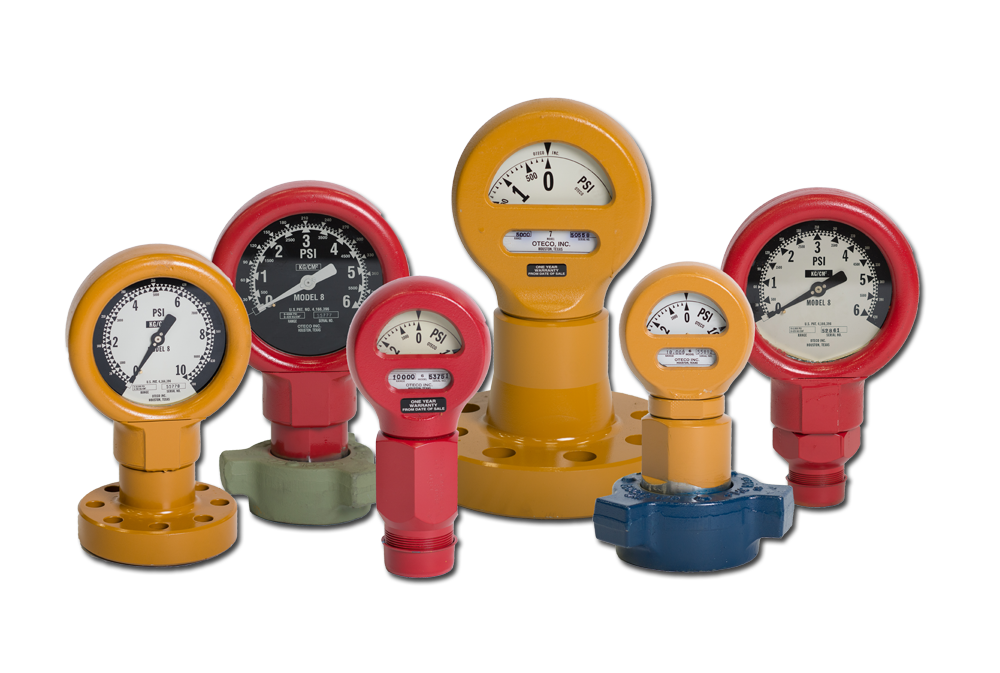

Oteco 382424 Model 8 Pressure Gauge

The OTECO Pressure Gauge offers high accuracy and dependability for your standpipe, mud pump, and other drilling and production applications where precision pressure measurements are required.

Features:

• All pressure gauges have a built-in dampening mechanism to minimize wear and mechanical shock.
• In addition, the heavy-duty seals restrict line fluid from entering the gauge mechanism.
• The gauge mechanism itself is surrounded by a special oil providing resistance to extreme temperatures, as well as vibration and shock.
• For additional safety, a low-pressure plug is installed to prevent gauge case and lens damage.
• All gauges are available for standard, saltwater, and sour gas.
• Manufactured, assembled and calibrated in the Oteco Houston, Texas, USA facility ensuring quality parts for accuracy and dependability.

Specifications:

• Trim: Standard
• Dial Face Type: Standard
• Dial Face Units: PSI
• Pressure Range: 0 - 10000
• Sub End Connection: Flanged: 2.06-10K RJIP3
• Dial Case: 8-1/8 Inch Diameter
• Height: 13-1/4 Inch
• Temperature Rating: -20°F to 250°F
• Manufacturer Description: PG,8SD,PSI,S10K,2.06-10K,RJIP3
