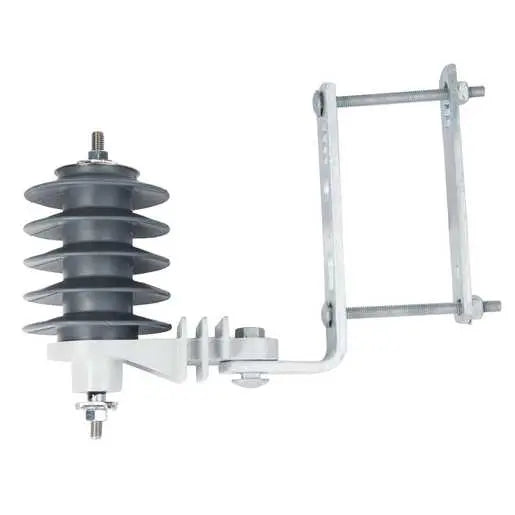

Ohio Brass PDV-100 Optima Arrester (22 kV MCOV, 7224 Hardware)

IEEE Heavy Duty / IEC Distribution High Polymer Housed Surge Arrester

High quality distribution surge arresters backed by more than 35 years of excellent field exposure

• Over 35 years of excellent field performance with over 40 million distribution arresters installed

• Long lasting ESPTM housing material with superior mechanical strength and electrical characteristics

• Reliable capacitive disconnector operates at fault currents as low as 1 Amp

• Dynamic triple sealing system protects internal components from moisture ingress to extend service lifetime

• High quality MOV discs made in Wadsworth, Ohio since 1978

• Arresters assembled in Aiken, South Carolina

• 100% routine tested

Application: Distribution
Bracket Type: NEMA 4x5 Crossarm Bracket
Cantilever Bending Strength - Max.: 80 Nm
Color: Gray Housing
EU RoHS Indicator: Contact Manufacturer
Material: ESP™ Polymer Housing
Mounting Position: Upright
Type: Distribution

Dimensions:

Height: 12.6 in
Stud Type: 3/8-16

Electrical Ratings:

Creep and Leakage Distance: 39.6 in (1005 mm)
Current - Low Current Long Duration (LCLD) Test: 250 A
Duty Cycle: 27 kV
Frequency Rating: 48-62 Hz
Maximum .5 Microsecond Discharge Volts @ Classifying Current: 95.9 kV
Maximum Discharge Voltage:

• 69.2 kV @ 1.5 kA

• 74 kV @ 3 kA

• 78.4 kV @ 5 kA

• 85.5 kV @ 10 kA

• 97.1 kV @ 20 kA

• 114.5 kV @ 40 kA

Maximum Switching Surge Protective Level @ 500A: 63.3 kV
MCOV: 22 kV
Minimum Strike: 13.4 in
Pressure Relief Capability-Symmetrical rms (kA): 20
Time - Low Current Long Duration (LCLD) Test: 2000 µs

Certifications And Compliance

Industry Standard(s): IEEE/IEC

Logistics

Pallet Quantity: 64
