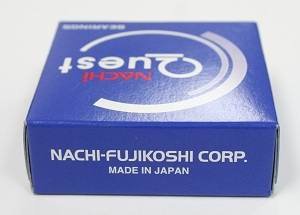

Nachi Quest 5306 Double Row Angular Contact Bearing 30x72x30.2 Japan Ball

5306 Nachi Double Row Angular Ball Bearing 30mm x 72mm x 30.2mm Made in Japan 5306 Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 30mm, outer diameter is 72mm and width is 30.2mm.

Item: 5306 Nachi Ball Bearing
Type: Nachi Double Row Angular Ball Bearing
Closures: Open
Dimensions: 30mm x 72mm x 30.2mm/Metric
ID (inner diameter)/Bore: 30mm
OD (outer diameter): 72mm
Width/Height/thickness:30.2mm
Size: 30 x 72 x 30.2 mm
Quantity: One Bearing
Dynamic load rating Cr: 41,500 N
Static load rating Cor: 29,000 N * Limiting Speed: *
Grease Lubrication: 7,000 RPM
Oil Lubrication: 9,500 RPM
Made in Japan

Nachi Double Row Angular Contact Bearing The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
