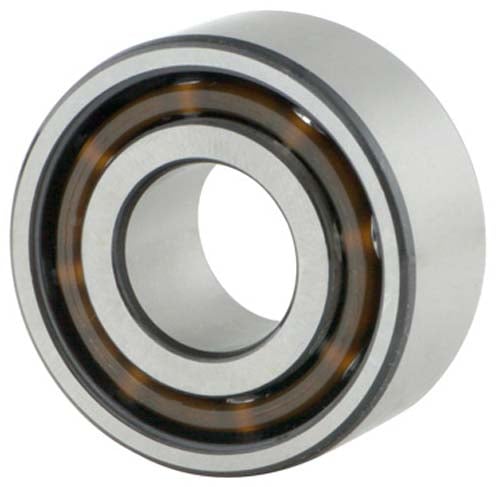

MRC 5202SBKF Double Row Angular Contact Bearing

Bore Type: Straight
Bore Diameter: 15 mm
Outside Diameter: 35 mm
Overall Width: 0.6250 in
Row Type Fill Slot: Double-Row Non-Fill Slot
Closure Type: Open
Snap Ring Included: Without Snap Ring
Duplex Type: Single
Bearing Type: Angular Contact Bearings
Contact Angle: 30 °
Bearing Material: Chrome Steel
Internal Clearance: C3
Radial Dynamic Load Capacity: 2560 lbf
Seal Material: Tinplate
Radial Static Load Capacity: 1530 lbf
Cage Material: Steel
Inner Ring Width: 15.875 mm
Element Material: Bearing steel
Max Rpm: 17000 rpm
Finish Coating: Uncoated
Precision Rating: Not Rated
Fillet Radius: 0.64 mm
Series: 5200-SB
Weight: 0.16 lbs
Type Of Bearing: Unmounted ball bearing
Description: 5202 SBKF BRG
Product Type: Angular Contact Bearings
