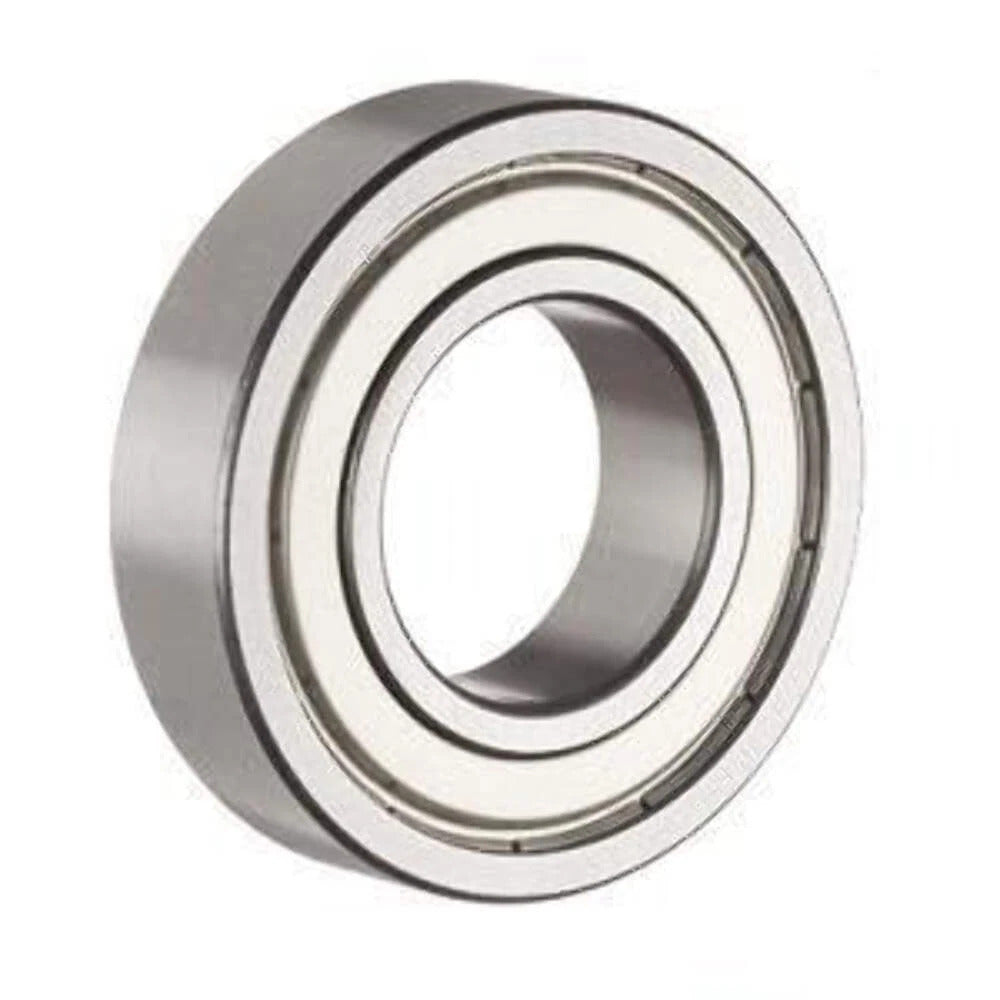

FAG 6208-2Z-L038-C3 Radial/Deep Groove Ball Bearing

• Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies

• These products are of simple design, durable in operation and easy to maintain; they are available in single and double row designs and in open and sealed variants

• Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields

• Open bearing: Prefix designation Null

• Sealed on both sides: Prefix designation 2RS

• Shielded on both sides: Prefix designation 2ZR

Specifications:

Bore Type: Straight
Bore Diameter: 40 mm
Outside Diameter: 80 mm
Overall Width: 18 mm
Closure Type: Double Shielded
Row Type Fill Slot: Single Row Non-Fill Slot
Snap Ring Included: Without Snap Ring
Internal Clearance: C3
Operating Temperature Range: -30 to +120 °C
Precision Rating: ABEC 1 (ISO Class Normal)
Finish Coating: Uncoated
Cage Material: Steel
Fillet Radius: 1 mm
Max Rpm: 10400 rpm
Standards Met: DIN 625-1
Series: 62
Radial Dynamic Load Capacity: 31000 N
Radial Static Load Capacity: 17800 N
Manufacturer Catalog Number: 6208-2Z-L038-C3
Weight: 0.82 lbs
