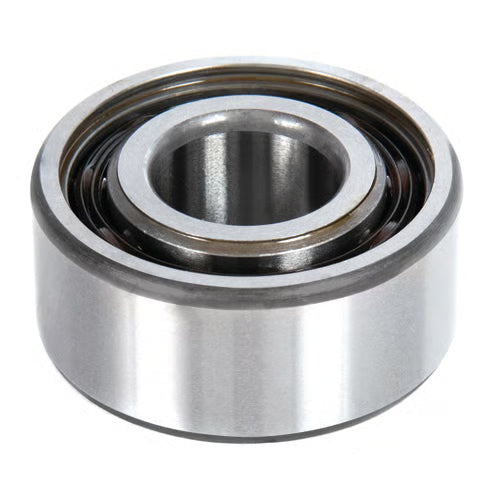

Fafnir 5210W Double Row Angular Contact Bearing

$ 196.47
Bulk Pricing: Request a Quote
  • Availability: In Stock
  • Product Sku: 5210W
Quantity
Shopify secure badge

Specifications:

Bore Type: Straight
Bore Diameter: 50 mm
Outside Diameter: 90 mm
Overall Width: 1.1875 in
Row Type Fill Slot: Double-Row Non-Fill Slot
Closure Type: Open
Snap Ring Included: Without Snap Ring
Bearing Type: Angular Contact Bearings
Contact Angle: 30 °
Internal Clearance: C0
Radial Dynamic Load Capacity: 15000 lbf
Radial Static Load Capacity: 12700 lbf
Cage Material: Steel
Max Rpm: 4290 rpm
Finish Coating: Uncoated
Precision Rating: Not Rated
Fillet Radius: 1 mm
Series: 5200
Weight: 1.66 lbs
Description: 5210 W BRG
Product Type: Angular Contact Bearings
