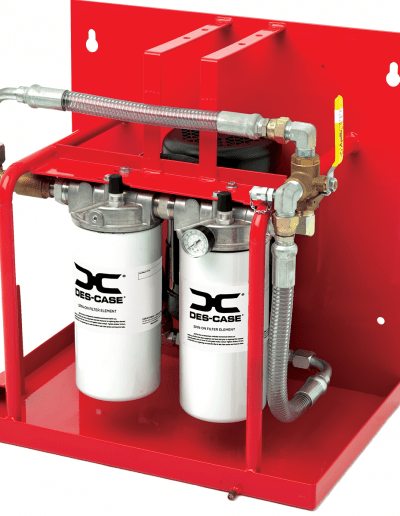

Des-Case P02EBA00006 Panel Unit

2 gpm, 1 hp, 115 vac,  1725 rpms, 13 amps, 60 hz electric motor base model with dual-stage filtration

A permanently mounted, continuous-duty system for critical applications or difficult to access equipment. It also can serve as a maintenance station.

Where It’s Used

• Decontaminating systems
• Cooling systems
• Collecting oil samples for analysis

What Can I Customize?

• Flow rates

• Filter bypass

• Sample valves

• Oil cooler

• Temperature gauge

• Color

• Hose-end connection sizes and types

• Micron rating of filters

Performance

For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of ISO VG 680 (3000ssu/648cSt) at 100°F/38°C within ambient temperature ranges of -15°F to 150°F (-26°C to 66°C)

Materials:

• Frame: Carbon steel

• Paint: Industrial powder coat

• Filter Heads: Aluminum

• Fittings: Zinc-plated steel and/or brass

• Pumps: Aluminum/steel

• Plumbing Hoses: Clear PVC with steel wire

• Gaskets: Buna-N

Filter Indicators:

• Filter indicator pops at 22psid (1.55bar) as warning that filter elements need to be replaced

Pump Relief:

• Opens at 65psi (5.49bar)

Weight:

• Approximately 100-130lbs (will vary depending on options selected)

Dimensions:

• 15.6"L x 23.4"W x 25.8"H
