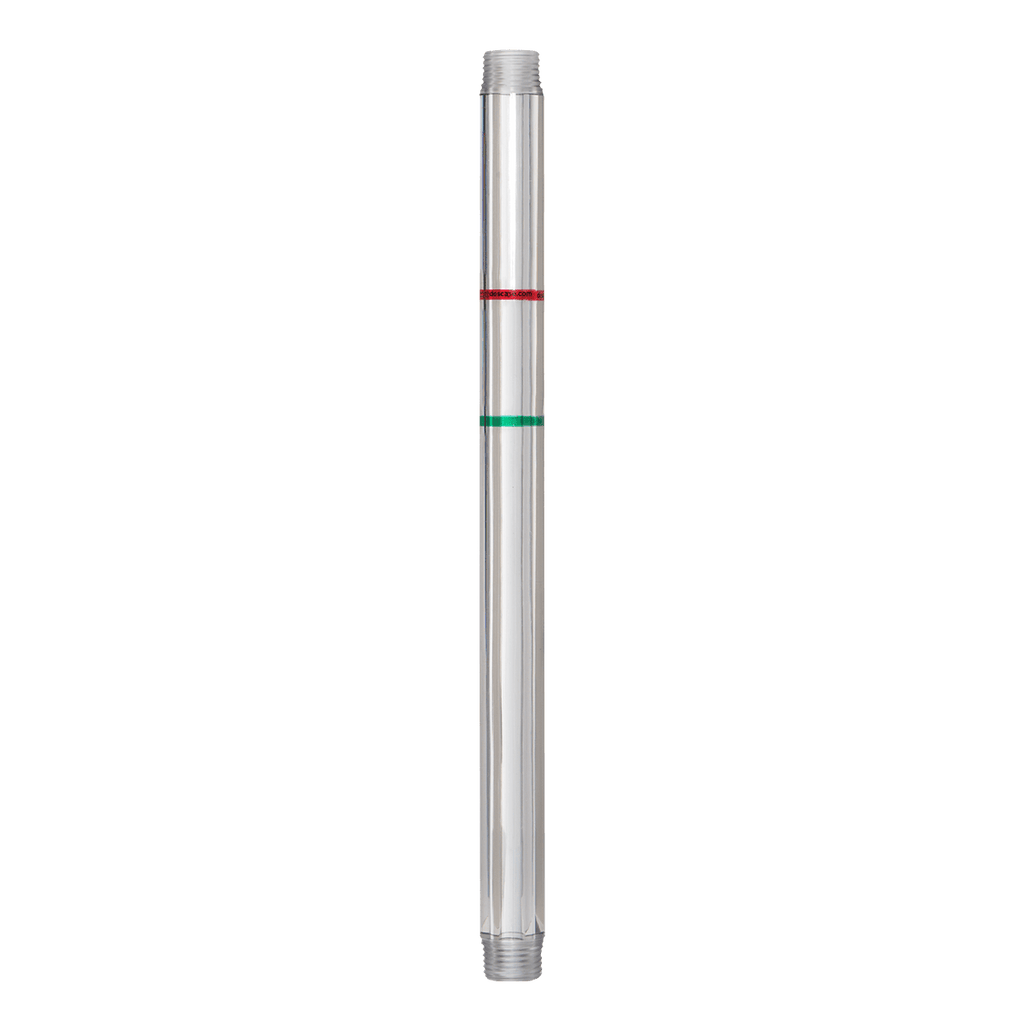

Des-Case DC-OLI27 Oil Level Gauge Indicator

27"/ 686 mm Oil Level Indicator, 7/8" OD, 1/2" Male NPT on each end

The Oil Level Indicator (OLI) was developed in response to the need of maintenance professionals to quickly gauge the condition and level of oil inside large tanks, gearboxes and reservoirs. The OLI is a clear high performance polyamide column with 1/2″ NPT threads at each end. Red and green level marker stickers are included with the OLI to mark upper and lower limits, or to designate running oil level and idle oil level. Utilizing the drain port, operators can visually monitor the fluid level within reservoirs.

* Stainless steel fittings and breather cap sold separately.

Features:

By the Numbers

1. ND-2 Breather
*Sold separately

2. Idle/Maximum Oil Level Marker

3. Running/Minimum Oil Level Marker

4. Stainless Steel Fitting
*Sold separately

Specs

Material

• Transparent Polyamide

Recommended Temperature Range

• -40˚F to 200˚F

• -40˚C to 93˚C

Maximum Operating Pressure

• 65 psi

• 4.48 bar


Chemical Compatibility
All gear, mineral and synthetic oils

Available Options

• Lengths ranging from 3″ to 15″

• Stainless steel fittings

• 2 micron breather cap (3″ to 12″ models)

• Custom lengths available upon request

Applications:

• Pumps

• Gearboxes

• Storage Tanks

Oil Level Gauge Indicator Technical Specs
