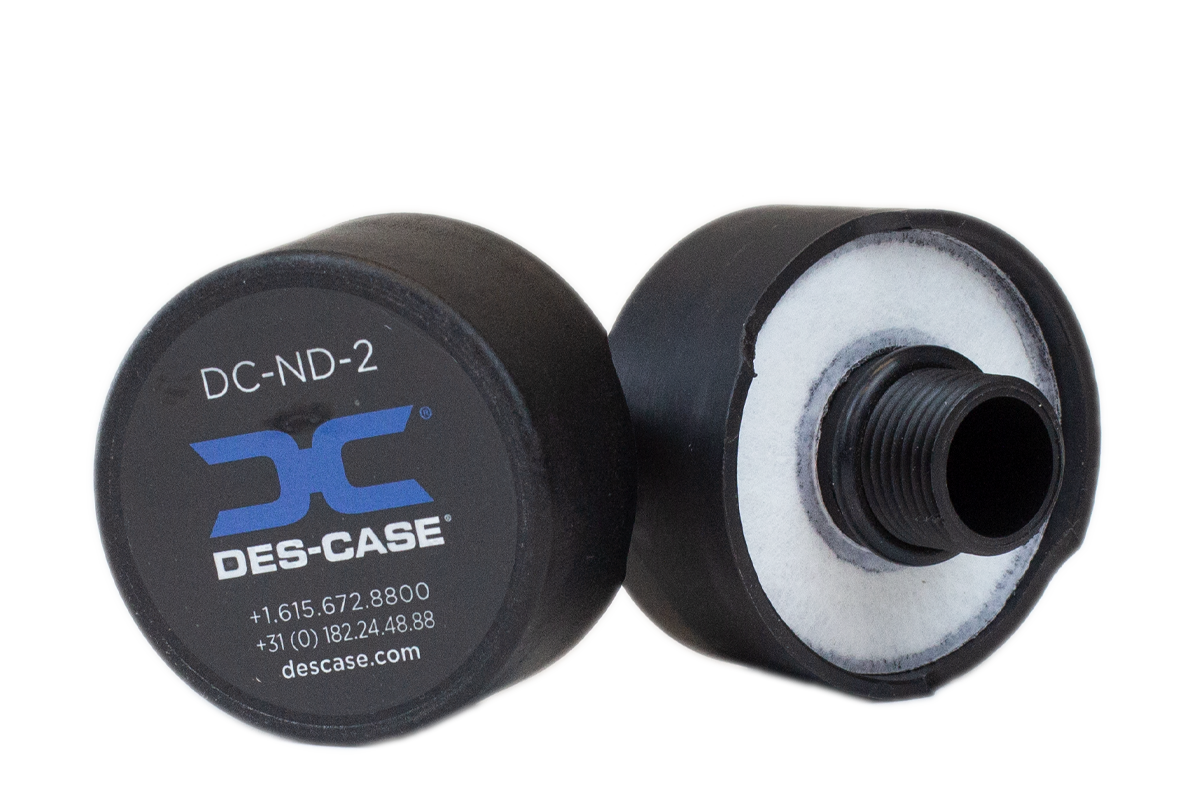

Des-Case DC-ND-2 Non-Desiccant Breather

Non-Desiccant Breathers

Des-Case Non-Desiccant breathers prevent contamination ingress in low humidity environments or in applications where water-based fluids are in use (e.g. water glycol hydraulic fluid). They help to prevent contamination by preventing free water as well as particles down to 1 micron from getting into the reservoir.

Features

By the Numbers

1. Rugged Exterior
Durable, shock absorbing housing.

2. Threaded Mounting
Easily replaces standard filler/breather cap with adapter/reducer options

3. Hydrophobic Filter Element
Particulate filter element repels water and protects against dirt

Specifications

Unit Height: 1.4 in (34 mm)
Unit Diameter: 1.8 in (46 mm)
Filter Efficiency: 0.3μ absolute (β0.3≥1000)
Max. Flow Rate: 0.67 cfm (19 lpm)
Operating Temp. Range: -40°F to 300°F (-40°C to 149°C)
Connection Size: 3/8″
Suction/Return Rate at 1 psid: 5 gpm (19 lpm)
Gearbox/Storage Tank Max. Volume: 15 gal (57 L)
Hydraulic Reservoir Max. Volume: 15 gal (57 L)
