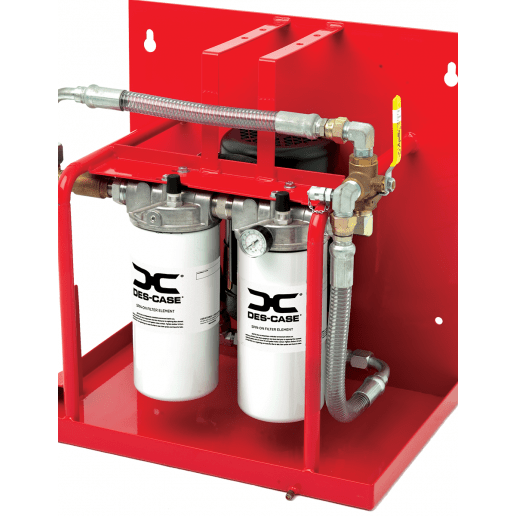

Des-Case CP03FB11 Compact Panel Unit

3.5 gpm, .25 hp, 230 vac, 60 hz, 1725 rpms, 2.5 amps, 60 hz electric motor base model (for low viscosity oils up to ISO VG 100) with single-stage filtration and sample valves

A compact, permanently mounted, and continuous-duty filtration system that’s designed for critical applications and difficult-to-access equipment. Or, it can serve as a maintenance station

Where It’s Used

• Decontaminating systems
• Collecting oil samples for analysis

What Are the Features?

• Automatic pressure relief valve
• Compact size–60% smaller than our standard unit
• Plastic removable drip pan
• Industrial powder-coated paint
• One-year warranty

What Can I Customize?

• Flow rates
• Sample valves
• Color
• Micron rating of filter

Performance

For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of ISO VG 680 (3000ssu/648cSt) at 100°F/38°C within ambient temperature ranges of -15°F to 150°F (-26°C to 66°C)

Materials:

• Frame: Carbon steel
• Paint: Industrial powder coat
• Filter Heads: Aluminum
• Fittings: Zinc plated steel and/or brass
• Pumps: Aluminum/steel
• Gaskets: Buna-N

Filter Indicators:

• Filter indicator pops at 22psid (1.55bar) as warning that filter elements need to be replaced

Pump Relief:

• Opens at 65psi (5.49bar)

Weight:

• Approximately 45-50lbs (will vary depending on options selected)

Dimensions:

• 10.2"L x 18.2"W x 18.1"H
