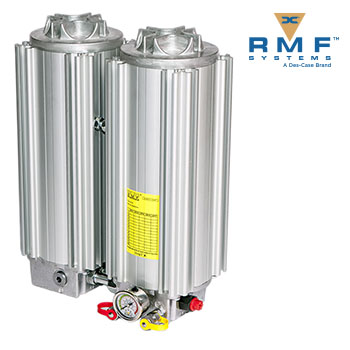

Des-Case BPU2B60HB000 Bypass Unit

$ 2,828.56

Bulk Pricing: Request a Quote

Availability: In Stock
Product Sku: BPU2B60HB000

Quantity

Product Description

By-Pass Unit, double housing, double length incl.2 cellulose elements 60HB, flow control valve, visual indicator and single-stage (parallel) filtration

The RMF Bypass Units are especially designed for mobile application in hydraulic and/or transmission systems.

Specifications

Nominal Flow	4,2 l/min
Standard Max. Oil Temperature¹	80°C
Max. pressure filter housing	20 bar
Inlet connection	1⁄4’’ BSP female
Outlet connection	1⁄2’’ BSP female
Operating pressure flow control valve (min – max)	12 – 420 bar
Suitable elements	60HB, 60HV, 60NB, 60NV, 60G1B, 60G1V, 60G3B, 60G3V, 60G6B, 60G6V, 60G12B, 60G12V 60A5V
By-pass openings pressure	6,2 bar (at 0 bar back pressure)
Max. tank volume	± 1500 l
Fluid compatibility²	Hydraulic fluids according to ISO 2943
Approximate weight	10 kg

¹ For other oil temperatures, please contact Des-Case
² For other fluids, please contact Des-Case

Features

How it works

The Bypass filter comes equipped with an integrated pressure compensated flow control valve. This valve bleeds oil from the main hydraulic system, passes this through the filter after which it is returned to the hydraulic reservoir. The amount of oil extracted from the main system at any time is insignificant ensuring that it will not affect the working of the main system. Most commonly used biodegradable oils in the mobile sector are suitable for filtration with RMF filter elements.

Applications

RMF Bypass filter units can be fitted to every imaginable mobile application where hydraulic and/or transmission systems are present. Installation is very simple, the filter housing provides mounting slots on all four sides and the pressure and return connections are available on the side and the back of the Bypass unit. In recent years RMF Systems have developed a great deal of experience in cleaning and keeping clean hydraulic and transmission systems on:
