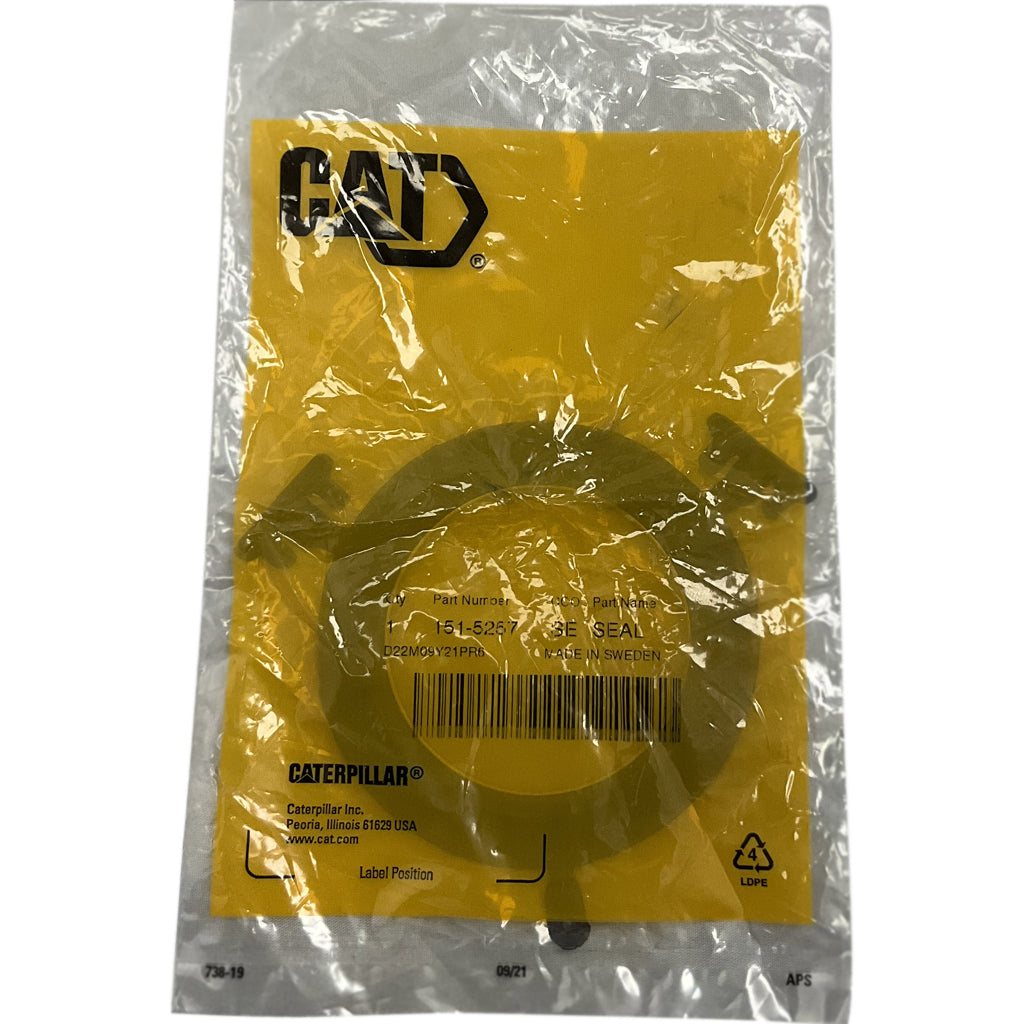

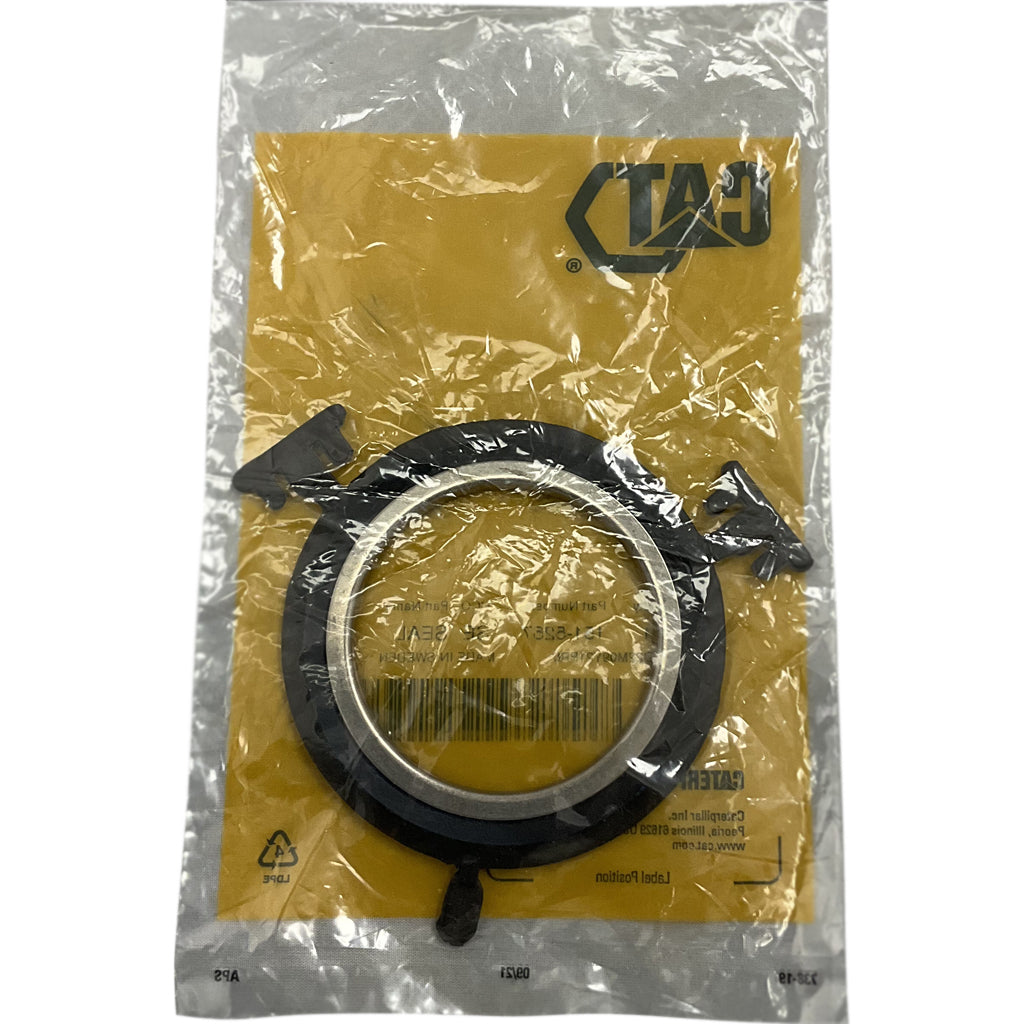

CAT 151-5257 4.4mm Thick Seal Ring

Cat 4.4mm Thick Rubber Seal Ring Used In Heat Exchanger

A Seal Ring is a component used in heat exchangers to create a tight seal between the plates of the exchanger. The seal ring is designed to create a tight seal between the plates, preventing any fluid from leaking or mixing with other fluids. The seal ring is designed to withstand high temperatures and pressures and ensure that it can withstand the harsh conditions of the heat exchanger.

Attributes:

• Provides uniform pressure distribution and effective sealing

• Provides a tight seal between the plates, preventing fluid leakage

• Attached with titanium collar to seal ring with GC8 to GC11 cement

Applications:
A Seal Ring is used to provide a tight and reliable seal between two mating surfaces in the heat exchanger, this is mostly used in Cat 3156B, 3508B, 3512B, 3516B, 3516C, C18, C32, G3412, G3412C and G3516B Generator Set, 3508B, 3508C, 3512B, 3512C, 3516B, 3516C, C15, C18, C32, G3408, 3408B, G3408C, G3412, 3412 and G3412C Engine (Piston)

Specifications:

Diameter (in): 3.11
Cross Section Height (in): Not Specified
Material: NBR/Titanium,Rubber
Cross Section Width (in): Not Specified
Thickness (in): 0.17
Gage Diameter (in): Not Specified
Seal Type: Ring Gasket

Compatible Models:

MARINE ENGINE
C15 C32
