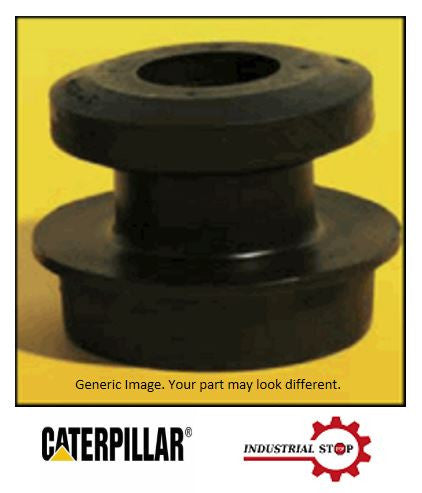

420-3968 Mount

Isolation mounts are used to attach and position systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise.)
Mount Type: Two-Piece - Non-Symmetric
Head Outside Diameter (mm): 64.8
Head Outside Diameter (in): 2.55
Head Thickness (mm): 22.9
Head Thickness (in): 0.9
Pilot Outside Diameter (mm): 37.6
Pilot Outside Diameter (in): 1.48
Inside Diameter (mm): 16.5
Inside Diameter (in): 0.65
Mount Height (mm): 61.7
Mount Height (in): 2.43
Pad Height (mm): 22.9
Pad Height (in): 0.9
Bonded Sleeve: No
Standard Bolt Size: M16
