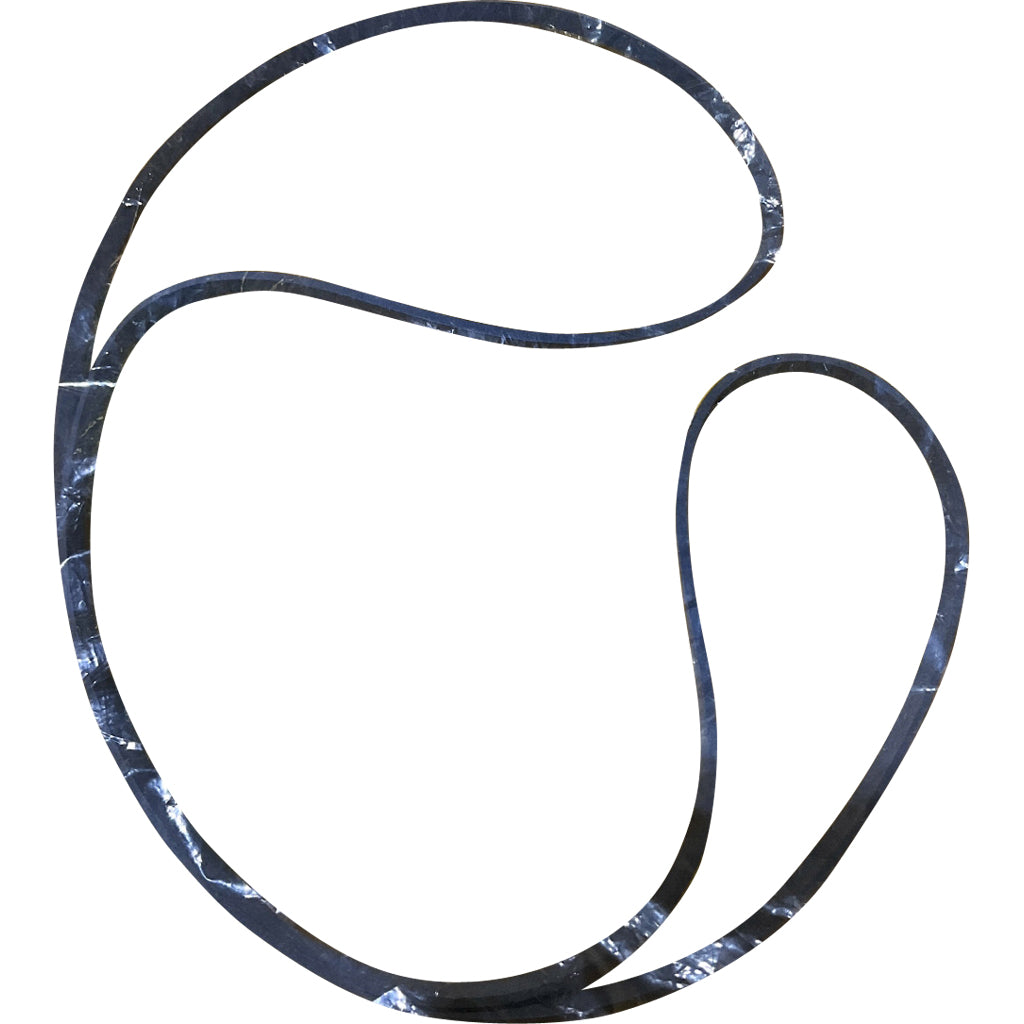

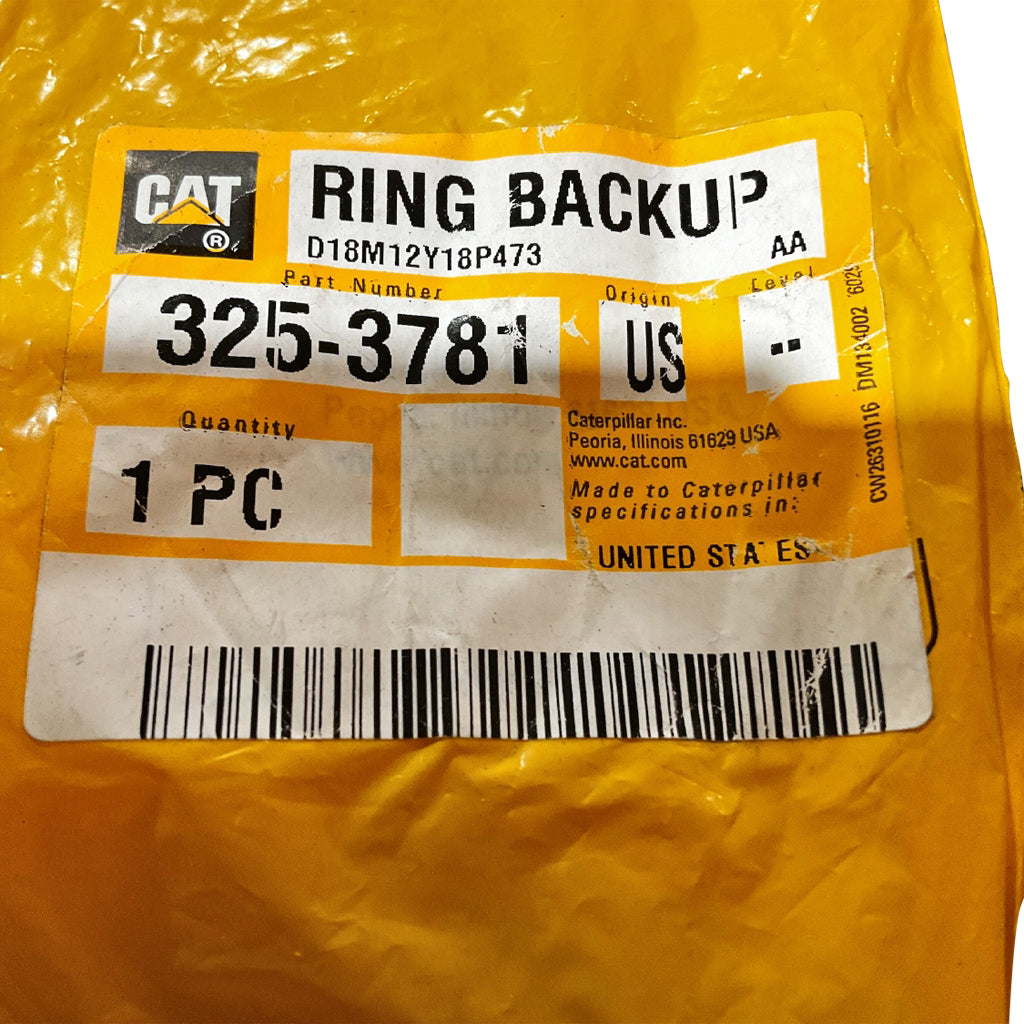

325-3781 - 371.72mm Inner Diameter Backup Ring

Cat 371.72mm Inner Diameter Plastic Backup Ring used in Piston of Planetary Carrier

Backup Rings prevent seal extrusion in high pressure applications, and may be used to protect the life of overall sealing system from pressure surges.


Attributes:

Cat Backup Rings are designed in conjunction with the elastomeric seal and mating components, and contribute significantly to the life and performance of the sealing system in high pressure applications.

Backup ring dimensions are consistently held to tight tolerances to ensure they properly bridge the seal groove and the mating surface. Materials are selected for their pressure and abrasion resistance.

Backup rings may be solid or split. Split rings are used for ease of assembly.

Cat Sealing systems protect more expensive parts from leaks and contamination. Protect your investment with Genuine Cat Seals.


Applications:

Backup rings are used in high pressure static and dynamic sealing applications, such as hydraulic pumps, valves and engine systems.


SPECIFICATIONS

Material: PTFE - Polytetrafluoroethylene
Inside Diameter (in): 14.65
Material Description: PTFE provides superior performance in Air, Engine Oil, Diesel Fuel and Coolant applications, but is sensitive to installation damage and debris. It works well at very high temperatures.
Cross Section Width (in): 0.1
Notes: Dimensions and Material Descriptions provided for reference only. Color may differ from image.
Seal/O-Ring Type: Solid
Cross Section Height (in): 0.18


COMPATIBLE MODELS

ARTICULATED TRUCK
745C 740 GC 745

INTEGRATED TOOLCARRIER
IT62G II IT62G IT62H

WHEEL-TYPE LOADER
950G II 962G 950H 950G 960F 962H 962K 950K 950F II 962G II

EJECTOR TRUCK
740

LOAD, HAUL, DUMP
R1300G II R1300G

WHEEL LOADER
950G 962G 962G II

ARTICULATED DUMP TRUCK
735C 745C 740C
