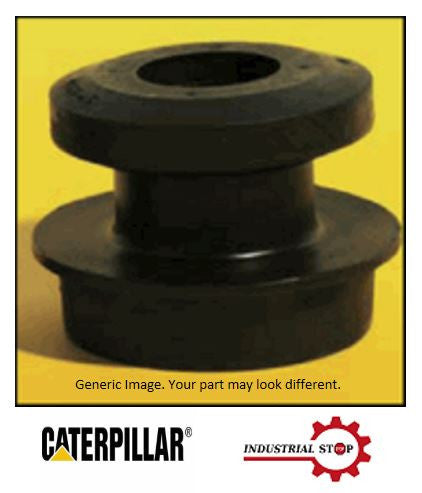

273-7309 Mount Assembly

Isolation mounts are used to attach and position systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Mount Type: Two-Piece - Non-Symmetric
Head Outside Diameter (mm): 90
Head Outside Diameter (in): 3.54
Head Thickness (mm): 28.8
Head Thickness (in): 1.13
Pilot Outside Diameter (mm): 50.2
Pilot Outside Diameter (in): 1.98
Inside Diameter (mm): 31.2
Inside Diameter (in): 1.23
Mount Height (mm): 60
Mount Height (in): 2.36
Pad Height (mm): 25
Pad Height (in): 0.98
Bonded Sleeve: No
Standard Bolt Size: M16
