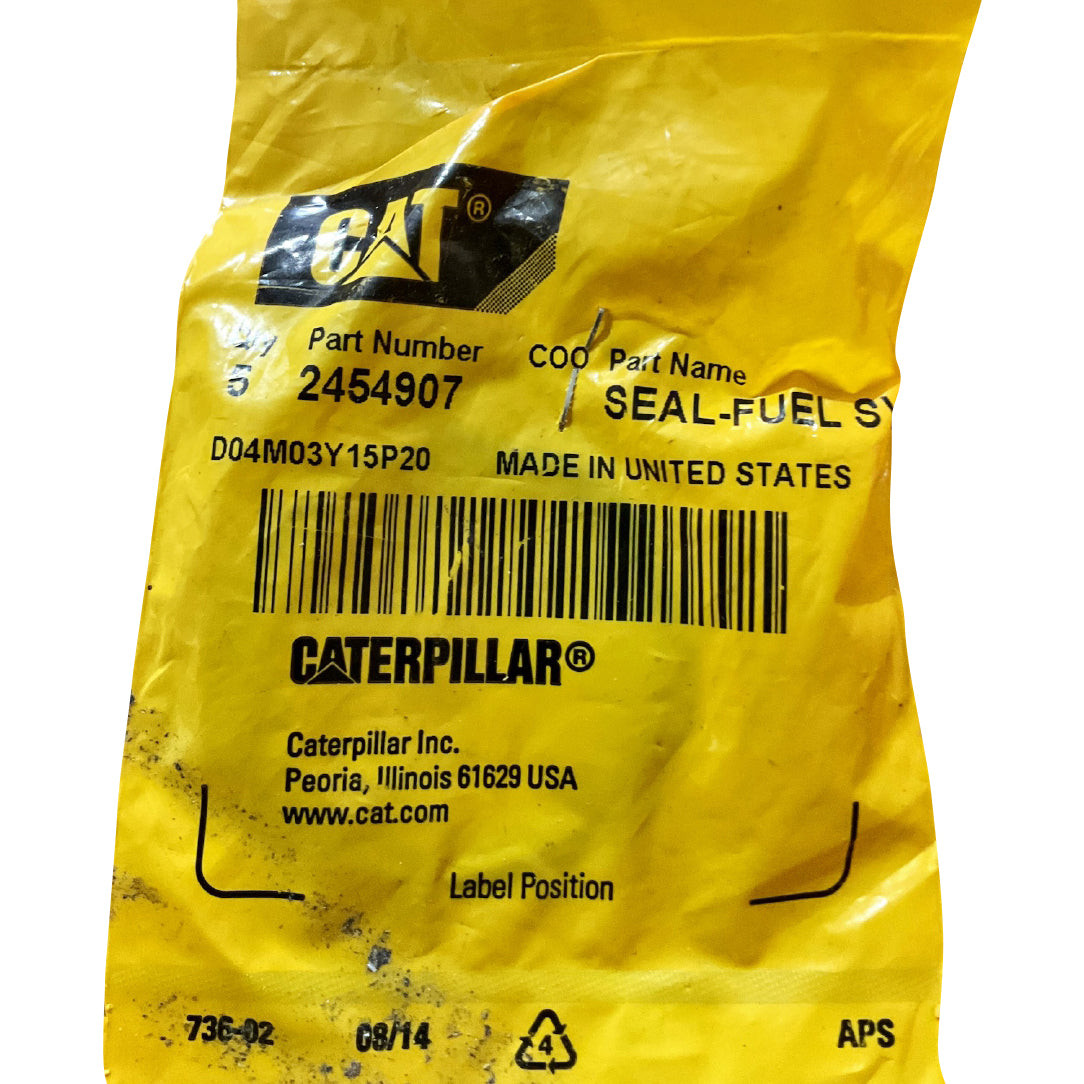

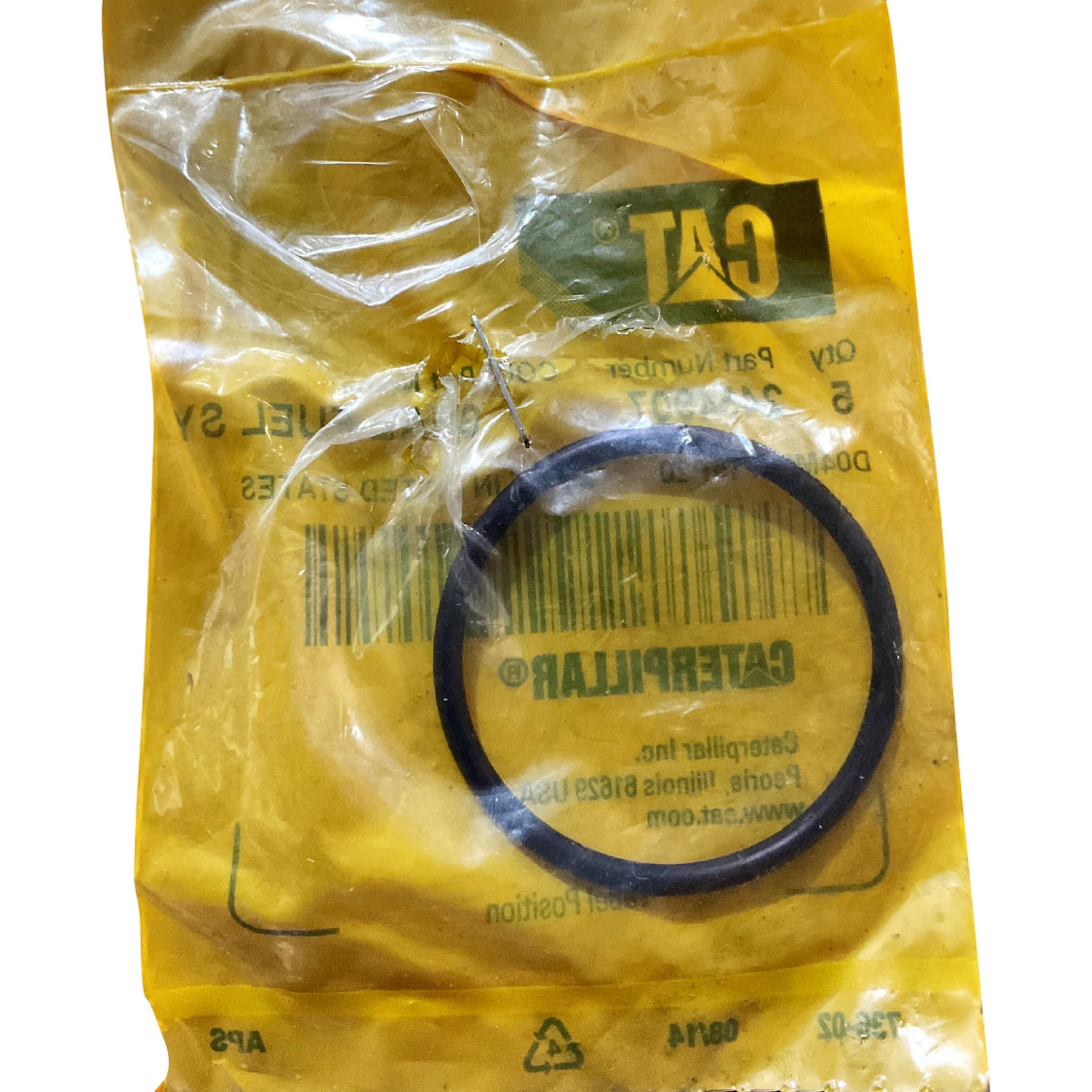

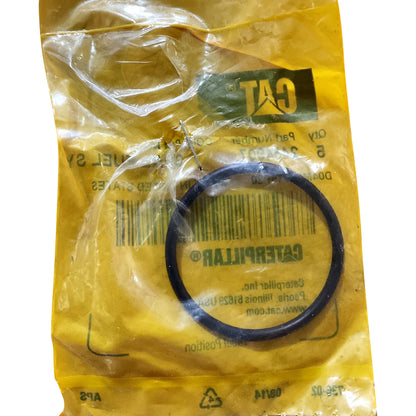

245-4907 - 36.17mm Internal Diameter Rubber O-Ring Seal

Cat Rubber Seal O Ring for Fuel Lines

Fuel system Seals are specifically designed and manufactured to work in the fuel system. Both O-ring and rectangular cross-section designs are used.

Attributes:

Cat Fuel System Seals go through additional advanced inspections to ensure reliable performance in this critical application. They are made from materials that are matched to the fluids, temperatures and pressures found in Cat fuel systems. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, some seals are coated with PTFE to minimize seal twisting and cutting during seal installation.

Dimensions of our seal are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.

Cat Sealing systems protect more expensive parts from leaks and contamination. Protect your investment with Genuine Cat® Seals.

Applications:

Fuel System Seals are used in engine fuel systems.


SPECIFICATIONS

Cross Section Diameter (in): 0.1
Inside Diameter (in): 1.42
SAE AS568 Dash Size: -127
Outside Diameter (in): 41.41
Hardness (Shore A): 90
Color: Dark Blue
Material: FKM - Fluoroelastomer,FKM
Material Description: FKM rubber is capable of service temperatures of -40 to 150C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber should not be used in applications that require resistance to water or coolant.
Coating: PTFE coating protects the O-Ring from installation damage and provides ease of assembly.
Color Notes: Actual o-ring color may differ from image.
Notes: Dimensions and material descriptions provided for reference only.
Seal/O-Ring Type: Standard
Primary Sealing Material: Rubber


COMPATIBLE MODELS

PUMPER
SPF343C

GENERATOR
SR4 SR5 SR4B SR4BHV

TRUCK ENGINE
3406C 3406B

POWER MODULE
3516B 3516C XQ2280

WHEEL-TYPE LOADER
992G 962K 994D

WHEEL TRACTOR-SCRAPER
627E 623F 623E 621E 621F

MARINE PRODUCTS
3508B 3512B 3508 3516B

OFF HIGHWAY TRUCK
789G 793D 789 3508B

MOTOR GRADER
12H 16G

HYDRAULIC SHOVEL
6060

TRACK-TYPE TRACTOR
D11N D11R

ROTARY DRILL
MD6380

MARINE AUXILIARY
3516C 3516B 3512C 3512B 3508B 3508C 3512

MARINE ENGINE
3512C 3516 3512E 3512 3508 3508C 3508B 3512B 3412C 3406B 3516B 3516C 3516E

PIPELAYER
578

EXPANDED MINING PRODUCTS
MD6540C

EXCAVATOR
5130 5230 5230B 5130B

ENGINE - GENERATOR SET
3512B PP3516 XQC1600 XQC1200 3516C GEN 3516C 3516E PM3508 3516B PM3512 PM3516 3516B GEN

PETROLEUM PACKAGE
TH35-C15I

WHEEL TRACTOR
627F

GENERATOR SET
3508B 3512C 3512B SR5 3508 3412C 3406C 3516C 3516B 3516E

ENGINE
3516C 3516E 3512E 3512B 3512C

EARTHMOVING COMPACTOR
826C

PETROLEUM TRANSMISSION
TH48-E80

LOCOMOTIVE ENGINE
3516C 3516B 3508C 3508B 3512E 3512C 3512B

PETROLEUM ENGINE
2016 3516C 3516B C27 3508C 3508B 3512E 3512C 3512B

WHEEL DOZER
854G

PETROLEUM GEN SET
3512B 3512C

WHEEL LOADER
995 980C 992G 994F 994K 994H

ROAD RECLAIMER
RR-250 SS-250

CHALLENGER
MTC755

ENGINE - MACHINE
C4.4 3516C

GEN SET ENGINE
3406C 3406B 3516B 3512 3512B 3508B 3516

PETROLEUM PRODUCTS
3512B 3512C 3508B 3508C 3516C TH48-E70

OFF-HIGHWAY TRUCK
785G 785D 785B 785C 776C 776D 793C 789 785 777 777C 789D 777D 789B 777B 789C 793B 784C

ENGINE - INDUSTRIAL
SPS343 3508B SPF343 3512B SPT343 3561B 3406B 3516E 3516C 3516B LD700E

INDUSTRIAL ENGINE
3516B 3516C 3406C 3508B 3512E 3512B 3512C

WHEEL SCRAPER
627F

TRUCK
785 797 793D 793C 789D 777D 785G 785D 797B

SPRAY AR
CAT WDS
