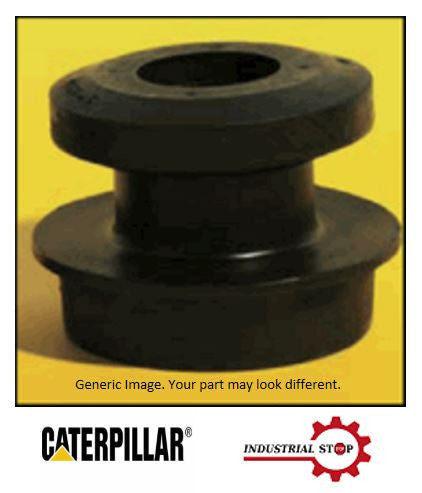

238-8564 Mount Assembly

Isolation mounts are used to attach and position systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Mount Type: Two-Piece - Non-Symmetric
Head Outside Diameter (mm): 64.8
Head Outside Diameter (in): 2.55
Head Thickness (mm): 22.9
Head Thickness (in): 0.9
Pilot Outside Diameter (mm): 44.7
Pilot Outside Diameter (in): 1.76
Inside Diameter (mm): 16.7
Inside Diameter (in): 0.66
Mount Height (mm): 61.8
Mount Height (in): 2.44
Pad Height (mm): 22.9
Pad Height (in): 0.9
Bonded Sleeve: Yes
Standard Bolt Size: M16
