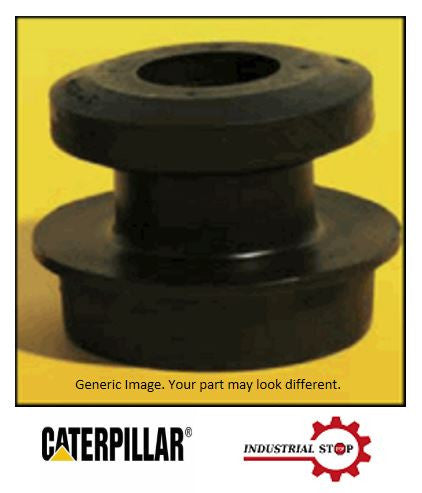

155-9412 Mount

Isolation mounts are used to attach and position systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Mount Type: Two-Piece - Non-Symmetric
Head Outside Diameter (mm): 145
Head Outside Diameter (in): 5.71
Head Thickness (mm): 31.5
Head Thickness (in): 1.24
Pilot Outside Diameter (mm): 70.2
Pilot Outside Diameter (in): 2.76
Inside Diameter (mm): 26.8
Inside Diameter (in): 1.05
Mount Height (mm): 84
Mount Height (in): 3.31
Pad Height (mm): 25
Pad Height (in): 0.98
Bonded Sleeve: No
Standard Bolt Size: M24
