152-5878 Mount

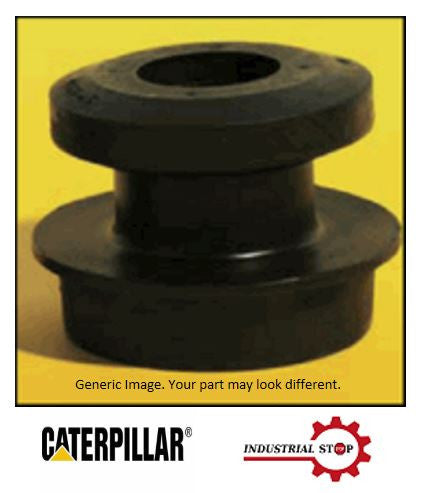

Mount Assembly

Isolation mounts are used to attach and position systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).

Two-Piece Mounts are extremely versatile and are available in symmetrical (two mounts) and non-symmetrical (mount plus pad) designs. They are installed into a bore on a support plate, and are bolted through a center sleeve, which may be bonded or loose.

Attributes:
Cat® Mounting Systems are designed to reduce stress and strain on mounted components to increase their durability and performance life, and to contribute to operator comfort. The entire system (mount design, material selection, placement, hardware, etc.) is optimized and validated to meet specific application requirements.

Two-Piece Mounts are finely tuned to the specific application through rubber composition and design geometry. The mounts are typically precompressed to offer long service life.

Applications:
Two-piece Mounts are used in a wide variety of Cat system installations, including engines, transmissions, aftertreatment systems, electronics, cabs and HVAC systems, hydraulic components, and structures.


SPECIFICATIONS

Bolt Type: M16
Bonded Sleeve: Yes
Head Outside Diameter (in): 2.55
Head Thickness (in): 0.9
Inside Diameter (in): 0.66
Material Description: Rubber
Mount Height (in): 2.43
Mount Type: Two-Piece - Non-Symmetric
Mounting Type: Two-Piece-Non-Symmetric
Pad Height (in): 0.9
Pilot Outside Diameter (in): 1.58


COMPATIBLE MODELS

Forest Products
2470C 2570C 2670C 553C 563C 573C

Wheel-Type Loader
910K 914K

Skid Steer Loader
216B 216 216B3 226 226B 226B3 226D 228 232 232B 232D 236 236B 236B3 236D 239D 242 242B 242D 242B3 246 246B 246D 247 247B 247B3 248 248B 249D 252 252B 252B3 257 257B 257B3 257D 259B3 259D 262 262B 262D 267 267B 268B 277 277B 277D 279D 287 287B 287D 289D
