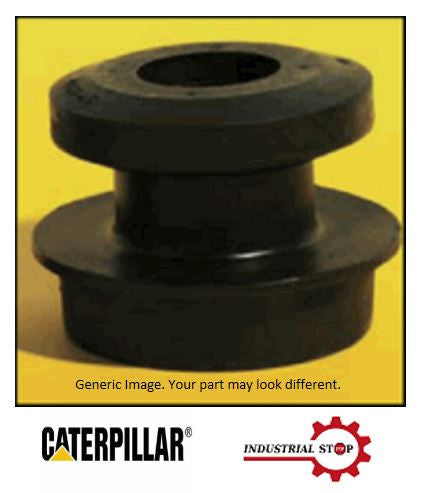

146-6395 Mount

Isolation mounts are used to attach and position systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Mount Type: Two-Piece - Non-Symmetric
Head Outside Diameter (mm): 39.6
Head Outside Diameter (in): 1.56
Head Thickness (mm): 12.3
Head Thickness (in): 0.49
Pilot Outside Diameter (mm): 30.2
Pilot Outside Diameter (in): 1.19
Inside Diameter (mm): 16.7
Inside Diameter (in): 0.66
Mount Height (mm): 31.8
Mount Height (in): 1.25
Pad Height (mm): 12.3
Pad Height (in): 0.49
Bonded Sleeve: Yes
Standard Bolt Size: M16
