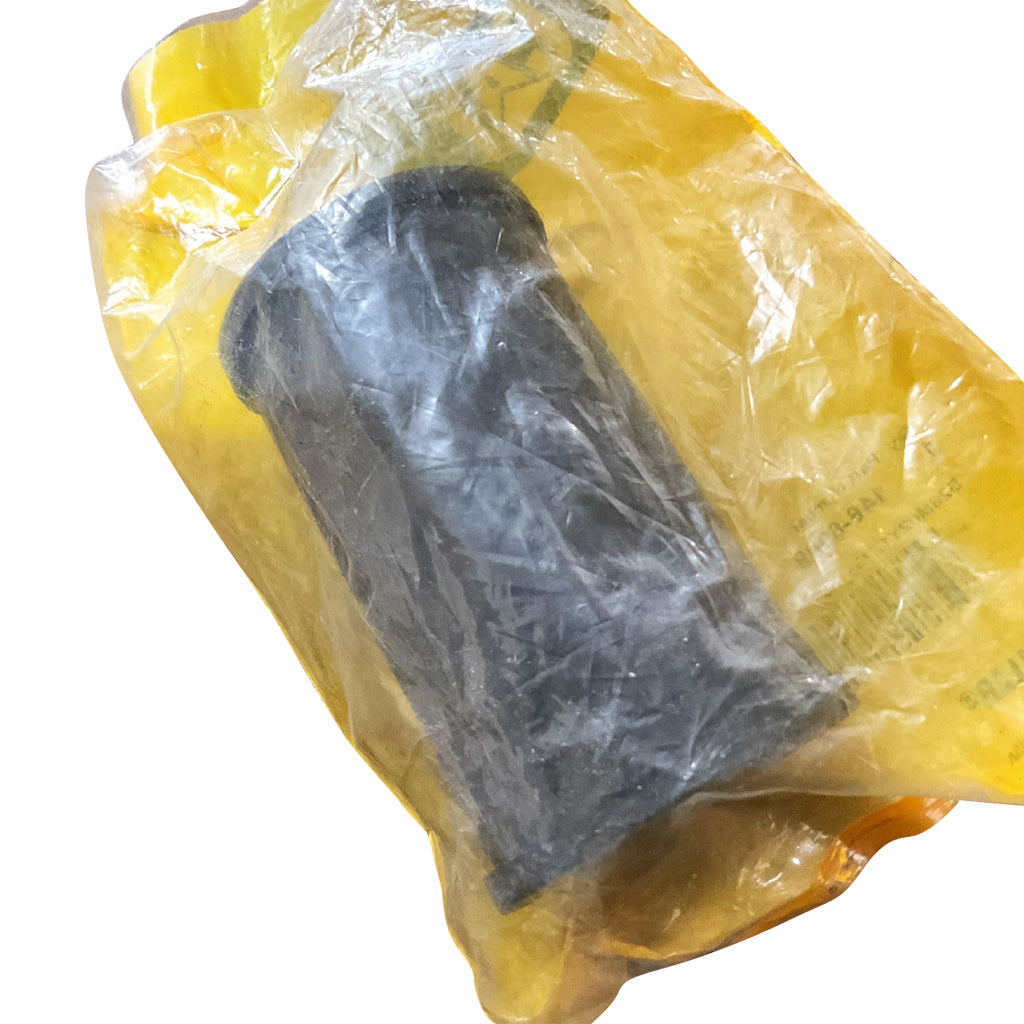

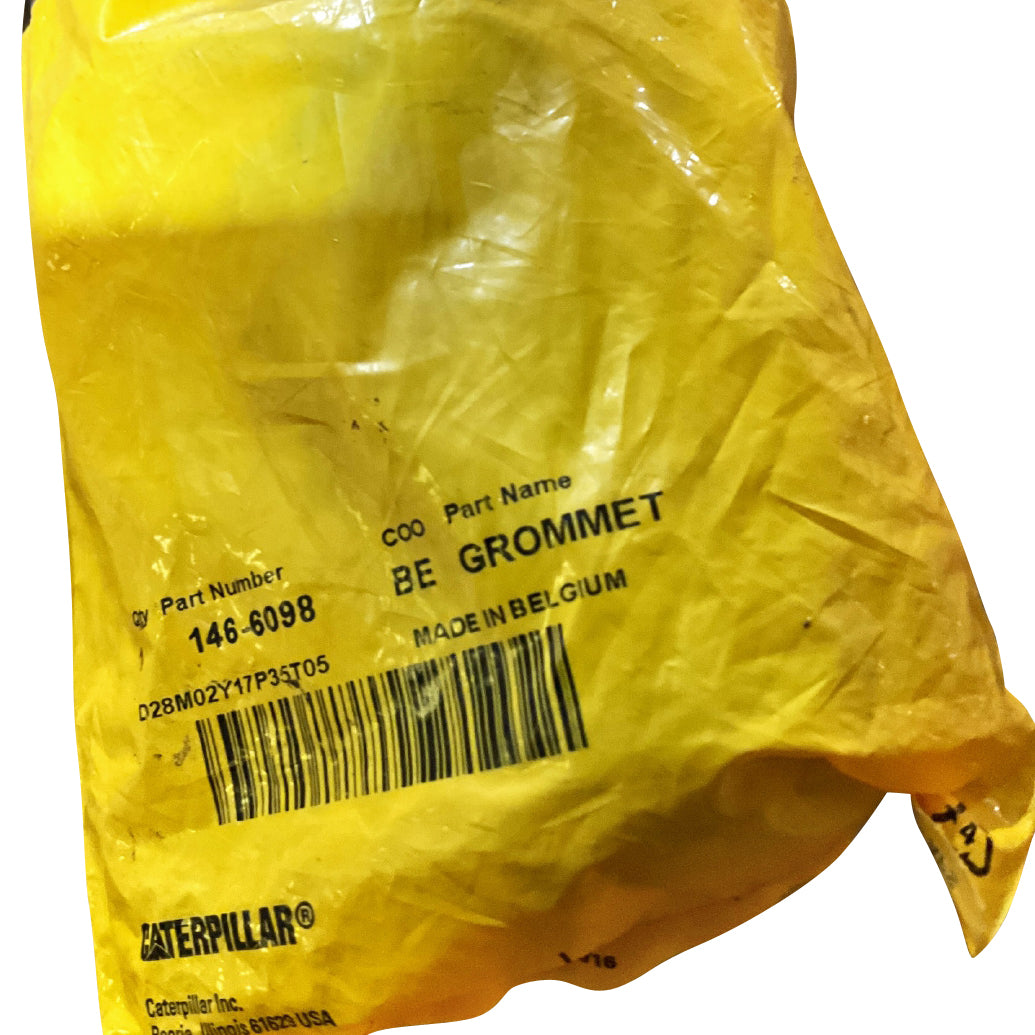

146-6098 - Hydraulic Hose Harnessing Grommet

Cat Hydraulic Hose Harnessing Silt Round Grommet

The Grommets are made from high-quality rubber intended for the environment of our equipment and used to protect Hoses and cables from contact with metal and isolate those components from damage (vibration, rubbing against the surrounding structure (vibration, shock, noise.)

Attributes:

• Features a flap of rubber that flares out on both sides of the material to hold the rubber in place.
• Manufactured to precise specifications and are built for durability, reliability, and productivity

Applications:

The Grommets are used in the Connecting lines of hoses for Harnessing and they are extensively used in CAT H120GC S, H120GC 100, 115, 120, 140, 160, H100, H100S, H110E, H110E S, H115E - Work Tool,312-A 315-A 317 N 317-A 317-A N 320B 320B L 320B N - Excavator, 950 GC - Wheel Loader


SPECIFICATIONS

Diameter (in): 2.04 (Groove)
Groove Diameter - B (+/- 0.001inch) (in): 2.04
Groove Width - A (in): 3.3
Inside Diameter (in): 1.47
Length (in): 3.7
Material Description: Rubber
Material: Rubber
Type: Split
Outside Diameter (in): 2.2
Width (in): 3.30 (Groove)
