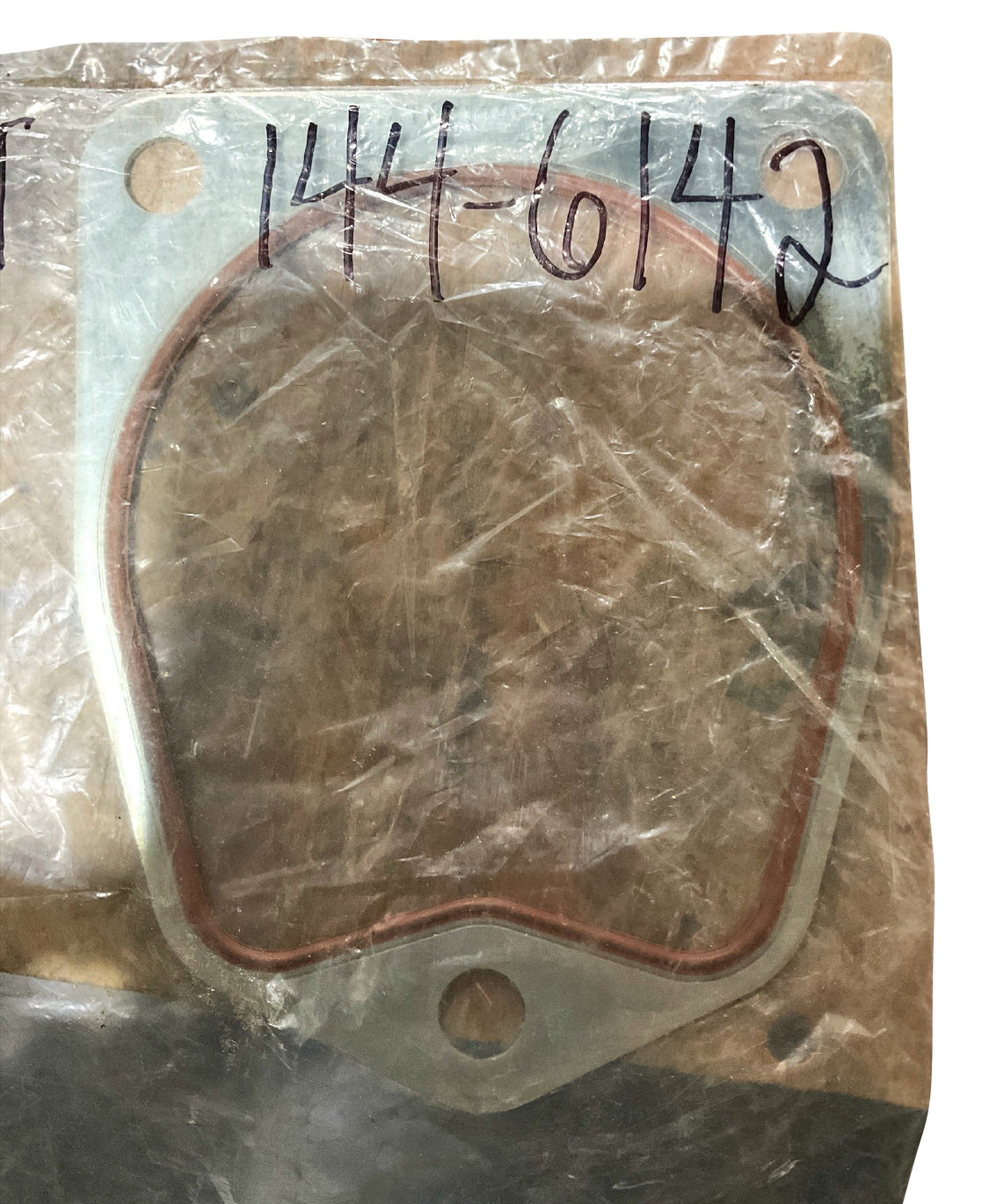

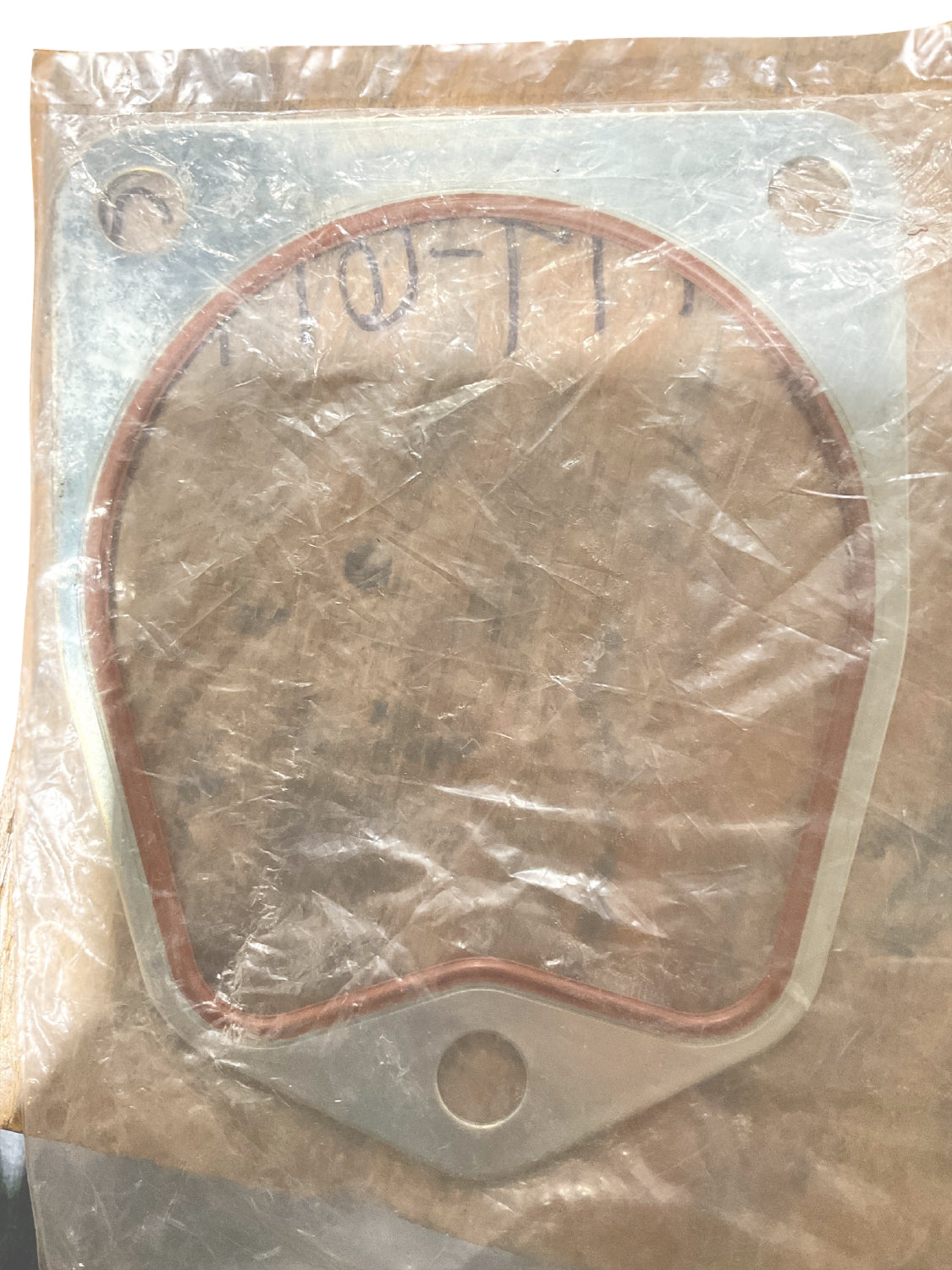

144-6142 - 1.71mm Thick Integral Seal Gasket

Edge Bonded Seal (Gasket)

Cat Edge Bonded Seals are used in static sealing applications and are designed with rubber bonded to a plastic or metal carrier to prevent leakage and contamination.

Attributes:

Cat Edge Bonded Seals are designed for ease of assembly, high bolt load retention, and enhanced surface conformance to mating components. Cat Edge Bonded Seals are made from materials that are matched to the fluids, temperatures and pressures found in Cat engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. Protect your investment with Genuine Cat Seals.

SPECIFICATIONS

Material Thickness (in): 0.067
Primary Sealing Material: FKM
Seal Shape: IRREGULAR
Material Description: FKM rubber is capable of service temperatures of -40 to 150C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber should not be used in applications that require resistance to water or coolant.
Length (in): 6.7
Material: Rubber(Seal) Steel(Carrier)
Height (in): 0.1

COMPATIBLE MODELS

GENERATOR
SR4

TRUCK ENGINE
3406C 3406B C-18 C-15 C-16 3176 3176B C16 C15 C18

WHEEL-TYPE LOADER
988K 980G 980H 986H 986K 988GC 986 980G II 988K XE

WHEEL TRACTOR-SCRAPER
631G 631E 637G 623G 615C II 621G

MARINE PRODUCTS
3406E

OFF HIGHWAY TRUCK
793F

MOTOR GRADER
12G 24M 14G

ARTICULATED DUMP TRUCK
735 OEM 740 735 735C 735B OEM 740C

TRACK-TYPE TRACTOR
D8R D8N D9T D8R II

MARINE ENGINE
C18 MARINE C18 C15 3406E

EXPANDED MINING PRODUCTS
MD6200 MD6290

EXCAVATOR
345B L 374F L 390F 390F L OEM 374F OEM 374F MHPU

ENGINE - GENERATOR SET
3456 C18

PETROLEUM PACKAGE
C18

MOBILE HYD POWER UNIT
385C 374F

WHEEL TRACTOR
627G

GENERATOR SET
G3516C C18 C18 MARINE GS

EARTHMOVING COMPACTOR
826K 826G 826H 826C 825K 825C 836K 826G II 836 826

PETROLEUM ENGINE
C32

SOIL COMPACTOR
825 825H 825G II

EJECTOR TRUCK
740 740B

COLD PLANER
PM-200 PM-201

WHEEL DOZER
834G 834H 834K 824H 824G 824C 824K 824G II

LANDFILL COMPACTOR
836H 836G

WHEEL LOADER
986H 988 980G II 988K XE 988G 988H 988K 980H 980G

ROAD RECLAIMER
RM500B RM-500

ENGINE - MACHINE
C27

CHALLENGER
MT845 MT835 MTC855 MTC865 MTC835 MT865 MTC845 MT855

GEN SET ENGINE
3406C 3406B POWER SYS

ARTICULATED TRUCK
740B 740 745C OEM 735B

PETROLEUM PRODUCTS
C-15 C32

OFF-HIGHWAY TRUCK
772G OEM 772G 769C 773GC 770G OEM 777C 777D 777B 777E 770G

ENGINE - INDUSTRIAL
3406B

INDUSTRIAL ENGINE
C32 3176C C18 3406E 3406C 3406 C-15 C-16 3456

TRUCK
793F CMD 772G 797F
