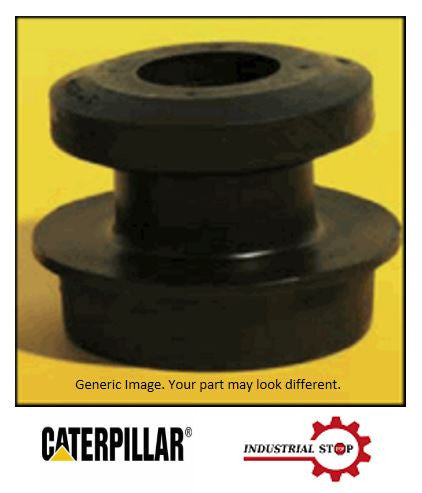

Isolation mounts are used to attach and position systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Mount Type: Two-Piece - Symmetric
Head Outside Diameter (mm): 95
Head Outside Diameter (in): 3.74
Head Thickness (mm): 22.3
Head Thickness (in): 0.88
Pilot Outside Diameter (mm): 62.6
Pilot Outside Diameter (in): 2.46
Inside Diameter (mm): 16.5
Inside Diameter (in): 0.65
Mount Height (mm): 30.8
Mount Height (in): 1.21
Bonded Sleeve: Yes
Standard Bolt Size: M16
